Refrigeration trailer air distribution chute
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Issued Date -
N/A
app pub date -
Apr 28, 2014
filing date -
May 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

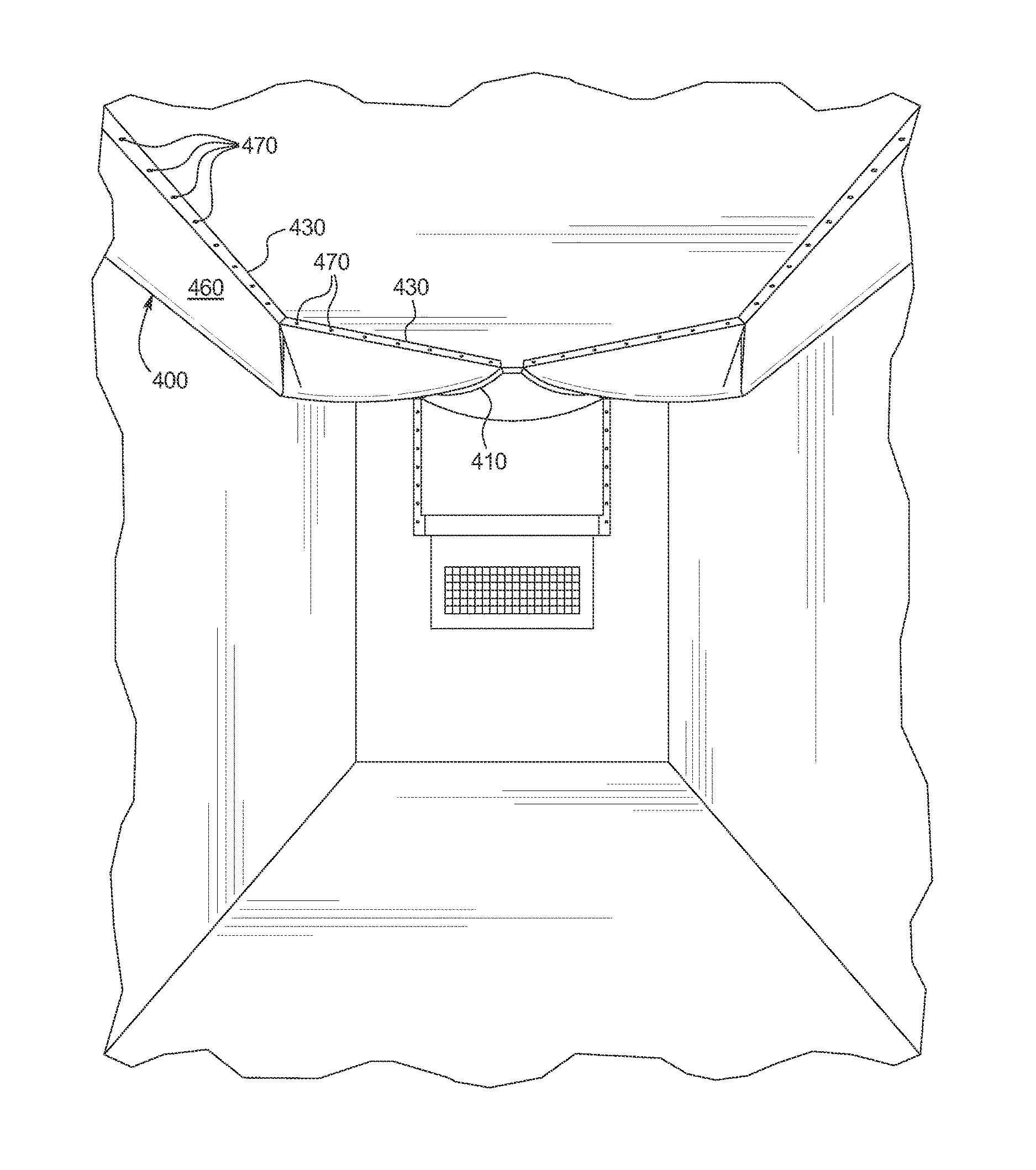

Various embodiments of the present disclosure provide a refrigeration trailer air distribution chute. The chute includes a first air director attachable to a ceiling of a refrigeration trailer spanning a refrigeration unit and a side wall of the trailer, and a second air director attachable to and extending along the ceiling proximate the side wall to the rear of the trailer. The first air director is attachable to the ceiling along two lines of attachment, causing the first air director to have a cross section of a first shape regardless of whether the chute is in an unexpanded or an expanded state. The second air director is attachable to the ceiling along one line of attachment, causing the second air director to have a cross section of a second shape when the chute is in the unexpanded state and a third shape when the chute is in the expanded state.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60H Class
- 500 Applications Filed
- 398 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60H Class
- 25.99 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 2, 2028 |
