Multi-barrel syringe injection system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Issued Date -
N/A
app pub date -
Jan 23, 2015
filing date -
Jul 26, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

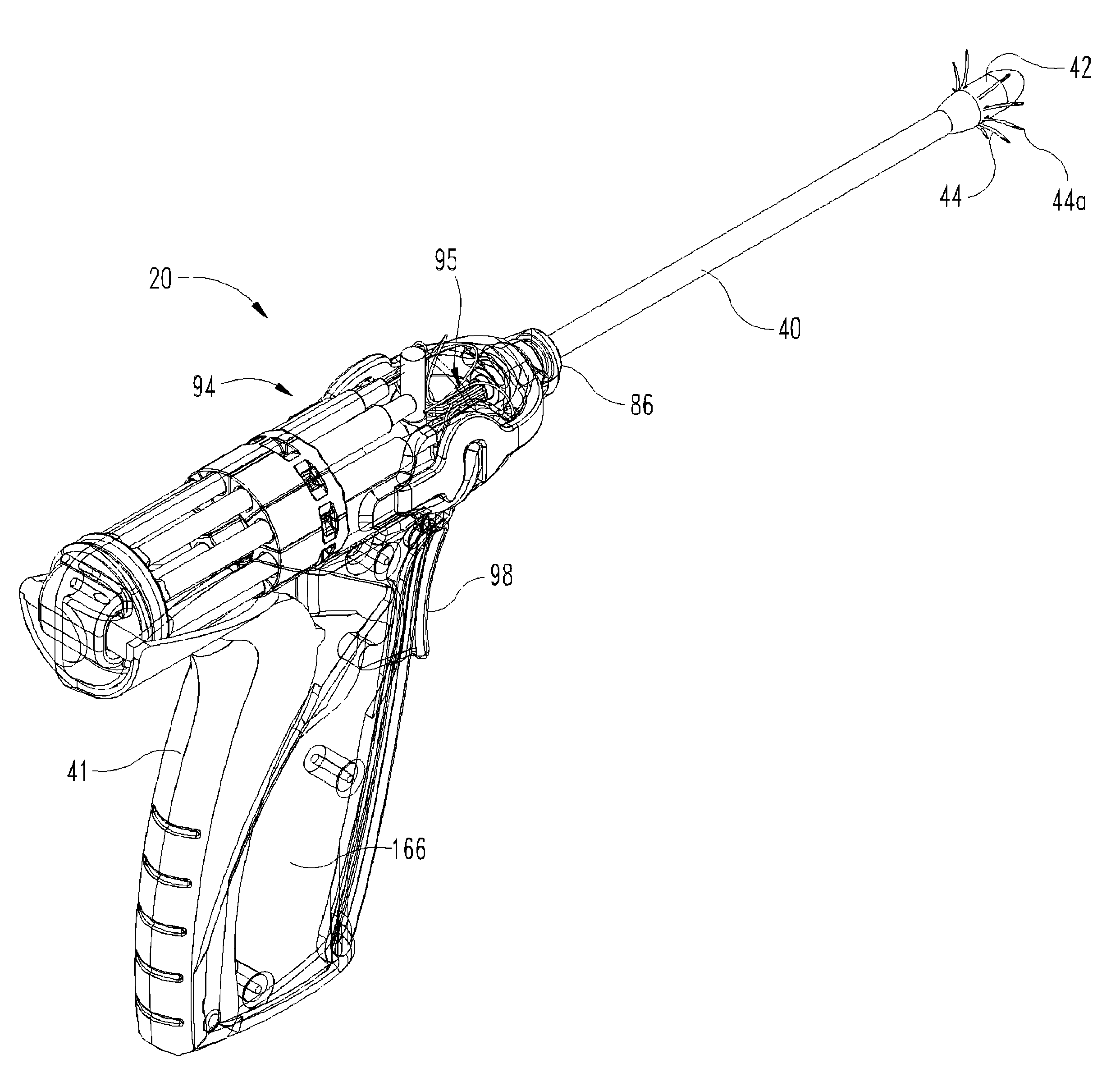

An injection device for injecting a medicant into a plurality of tissue sites in a patient for a selected treatment is constructed and arranged such that the number of tissue sites is the total number for the selected treatment thereby requiring a single positioning step. The injection device includes a body having a syringe and a control linkage, the syringe including a plurality of barrels, and a cooperating plunger array including a plurality of plungers. Each barrel receives a corresponding plunger. The injection device further includes a plurality of injection needles connected to the syringe wherein one injection needle is connected to each barrel, a multi-lumen tip, a shaft connected to the multi-lumen tip and extending between said multi-lumen tip and said body. The control linkage is connected to each needle so as to move each needle between a deployed injection position and a retracted position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61M Class
- 15.86 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 2, 2028 |
