Rinsing assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Grant Date -
Dec 19, 2013
app pub date -
Jun 18, 2012
filing date -
Jun 18, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

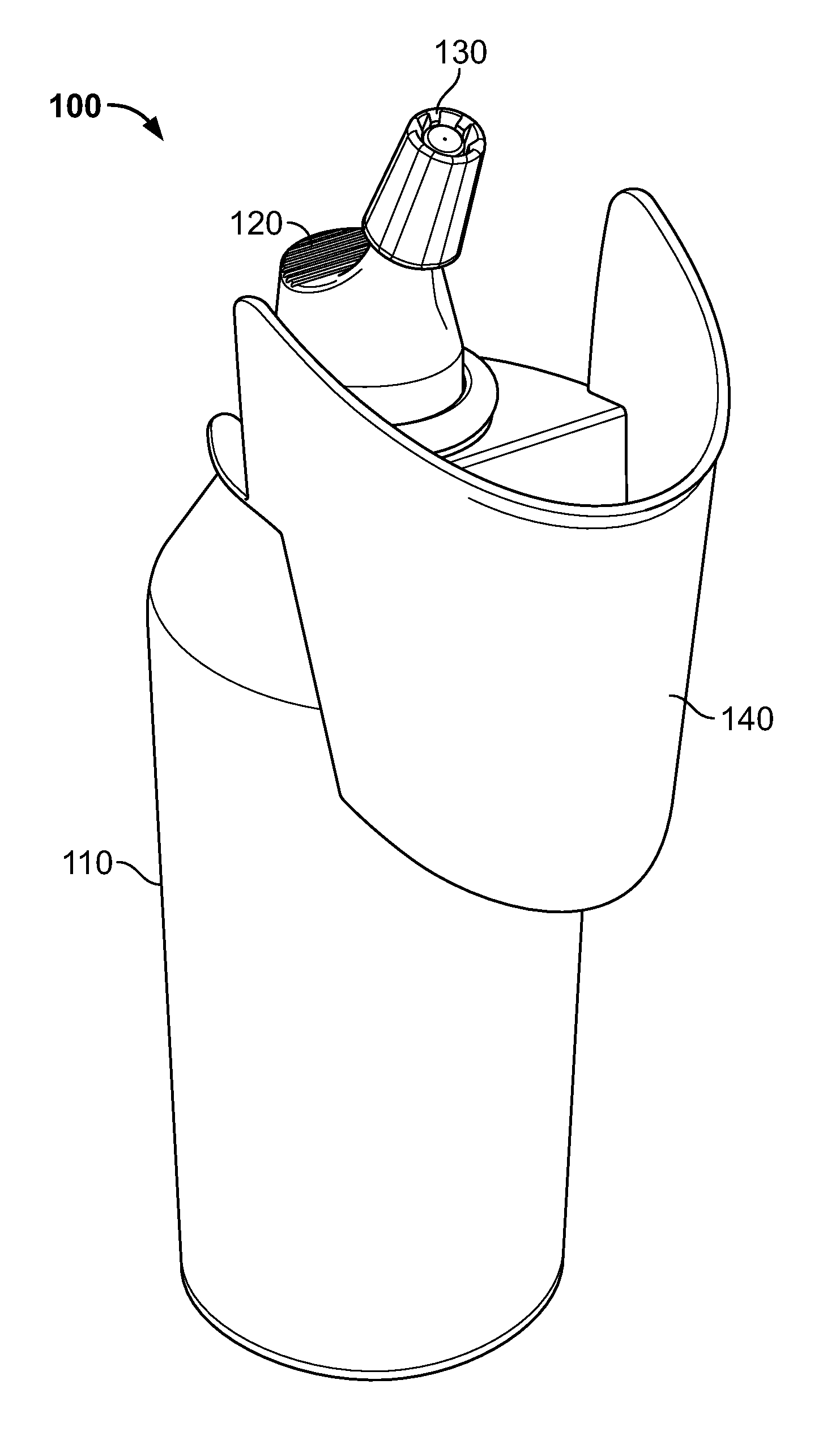

An assembly for dispensing fluid is described. In some implementations, an assembly can include a housing containing fluid, where the housing includes a conduit. The assembly can also include an actuator operably attached to the conduit of the housing. The actuator can include a body portion surrounding a cavity; a tip portion having a fluid path that is fluidly connected to the cavity, the cavity being fluidly connected to the conduit, and a channel support including a fluid passage space under pressure. The assembly can further include a collector having a collection zone configured to collect the fluid dispensed by the actuator.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A61M Class
- 15.86 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 2, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 2, 2028 |
