Medullary pin
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Grant Date -
Mar 3, 2016
app pub date -
Aug 24, 2015
filing date -
Sep 1, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

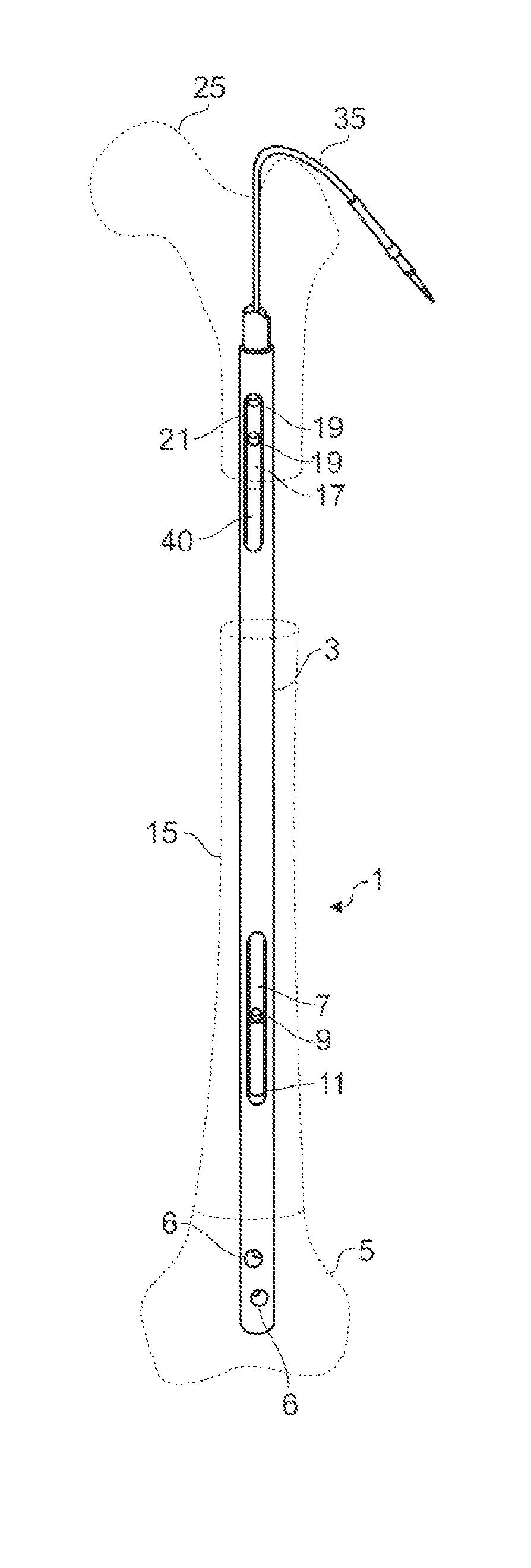

Medullary pin (1) for a distraction with segment transport and subsequent lengthening of a tubular bone, wherein the medullary pin (1) comprises: an at least partly hollow body (3) extending in an axial direction of the medullary pin (1), a locking means for locking the body (3) in a first end fragment (5) of the tubular bone, a first inner part (7), which is arranged displaceably in the axial direction inside the body (3) and comprises a first fixation means for the fixation of a middle fragment (15) of the tubular bone, a second inner part (17), which is arranged displaceably in the axial direction inside the body and comprises a second fixation means for the fixation of a second end fragment (25) of the tubular bone, and a drive unit (40) for the axial displacement of the first inner part (7) relative to the second inner part (17), wherein the drive unit (40) is arranged inside the body (3) between the first fixation means of the first inner part (7) and the second fixation means of the second inner part (17).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A61B Class
- 14.35 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 2, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 2, 2028 |
