Inductive flow meter including extended magnetic pole pieces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 25, 2017
Grant Date -
Feb 23, 2017
app pub date -
Aug 19, 2015
filing date -
Aug 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

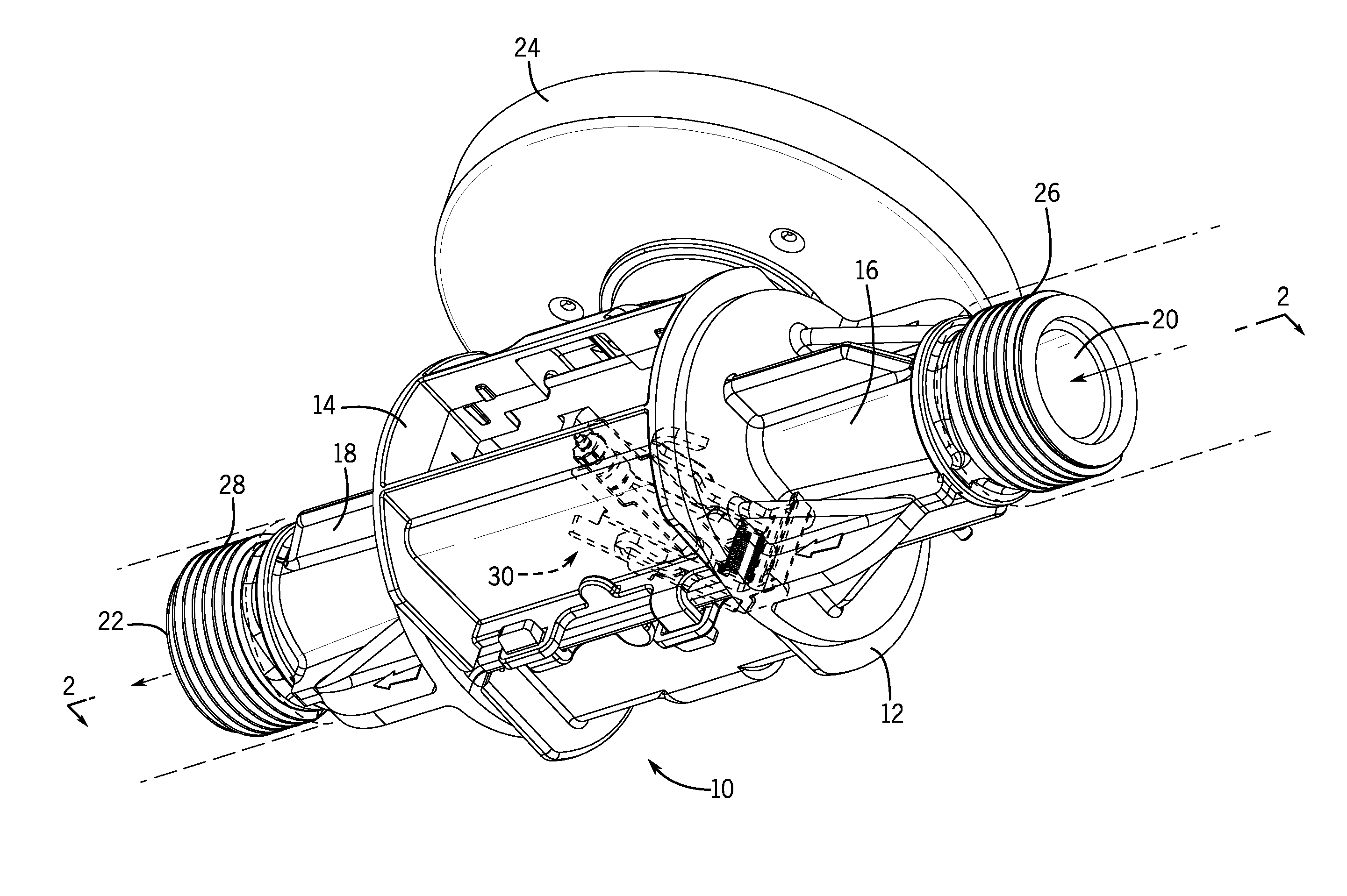

A magnetic flow meter includes a magnetic flow transducer positioned to sense the flow of water through the flow meter. The magnetic flow transducer includes first and second electrodes positioned on opposite sides of a measuring channel. First and second magnetic pole pieces are positioned on opposite sides of the measuring channel and orthogonal to the first and second electrodes. The magnetic pole piece includes extending tab portions that are located adjacent to the first and second electrodes on opposite sides of the first and second electrodes. The extended tabs formed on each of the first and second magnetic pole pieces reduce the induced voltage within the electrodes to increase the accuracy of the measurement taken by the magnetic flow transducer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01F Class
- 1076 Applications Filed
- 820 Patents Issued To-Date
- 76.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01F Class
- 22.89 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 25, 2028 |
