Bolted joint inner thread coating and methods of manufacturing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 25, 2017
Grant Date -
Feb 27, 2014
app pub date -
Aug 24, 2012
filing date -
Aug 24, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

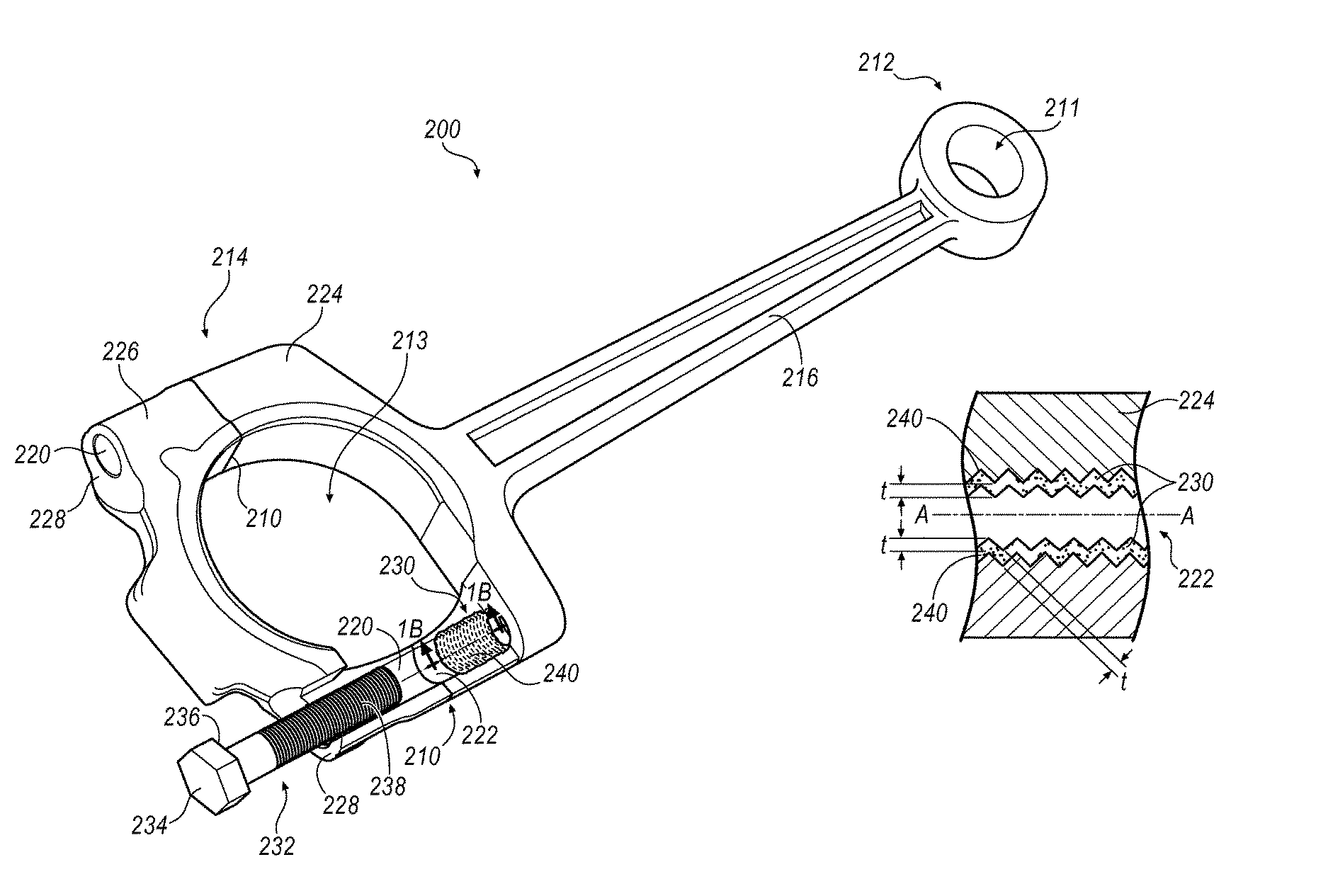

A device and corresponding methods for applying a coating material are disclosed. The method may include applying a first coating material on a threaded region of an opening in a multi-piece assembly, and inserting at least one fastener to the threaded region. The fastener may include a mating thread selectively secured to the threaded region of the opening to create a first friction interface between the fastener and the multi-piece assembly. The method may further include tensioning the fastener between a load surface of the multi-piece assembly and the mating thread. In one example, the load surface may define in part a second friction interface between the fastener and the multi-piece assembly that is spaced away from the threaded region such that the first coating material does not influence the second friction interface. In another example, the first coating material may be applied in a substantially uniform thickness.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 25, 2028 |
