Mounting device and method of assembling the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2017
Grant Date -
Mar 13, 2014
app pub date -
Aug 9, 2013
filing date -
Sep 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

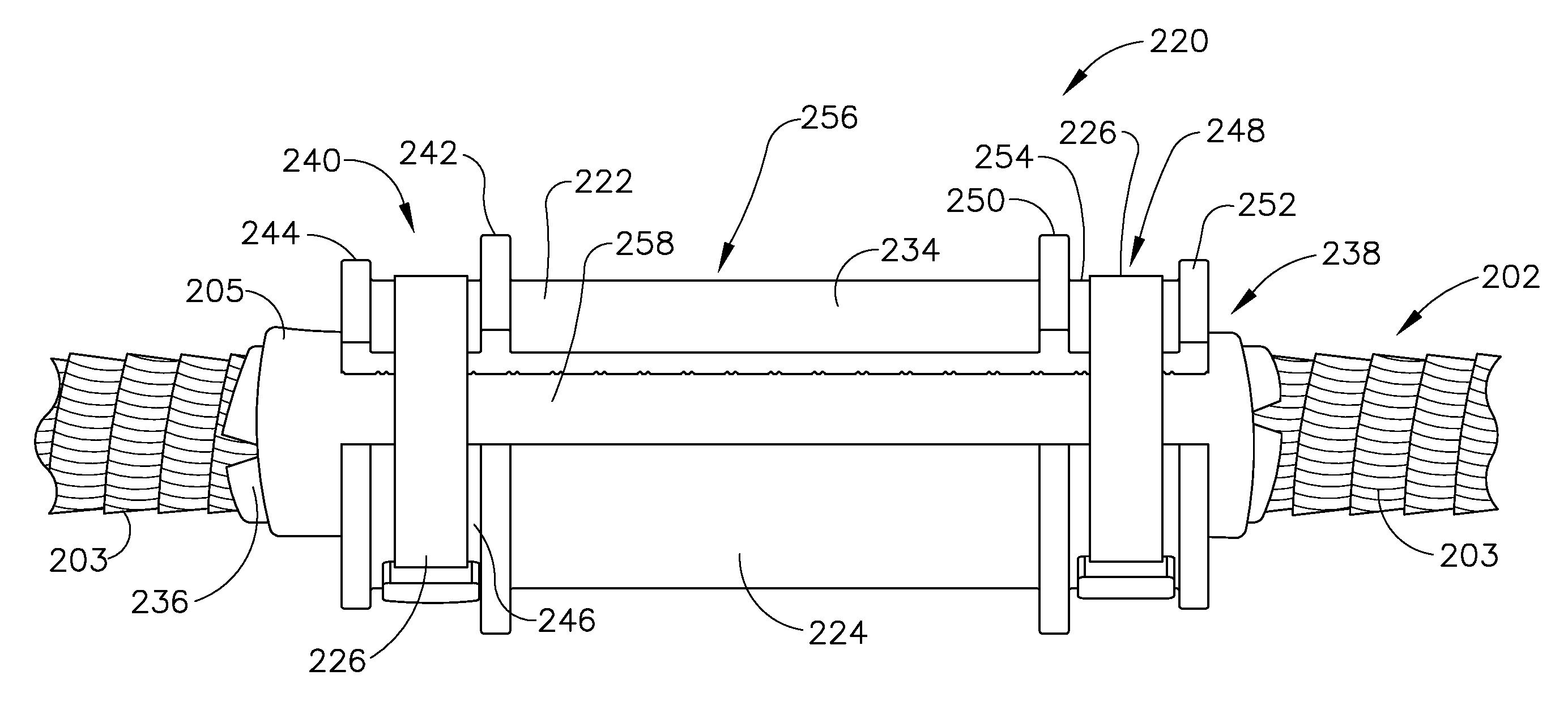

A method and a system for a mounting device are provided. The mounting device includes at least two shells, each shell having an inner surface and an outer surface wherein the outer surface includes a first banding zone, a second banding zone, and a clamping zone extending between the first banding zone and the second banding zone and a pair of shoulders bounding each of the first banding zone and second banding zone. The mounting device also includes an intermediary material circumscribing the wire bundle including at least one of a substantially non-porous material, a vulcanizing tape, and a silicone material. The mounting device further includes at least one fastener configured to engage the first banding zone or second banding zone to couple the first shell and the second shell to the wire bundle and the intermediary material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02C Class
- 960 Applications Filed
- 829 Patents Issued To-Date
- 86.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02C Class
- 15.98 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 18, 2028 |
