Connector for cavity filter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2017
Issued Date -
N/A
app pub date -
Mar 21, 2016
filing date -
Dec 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

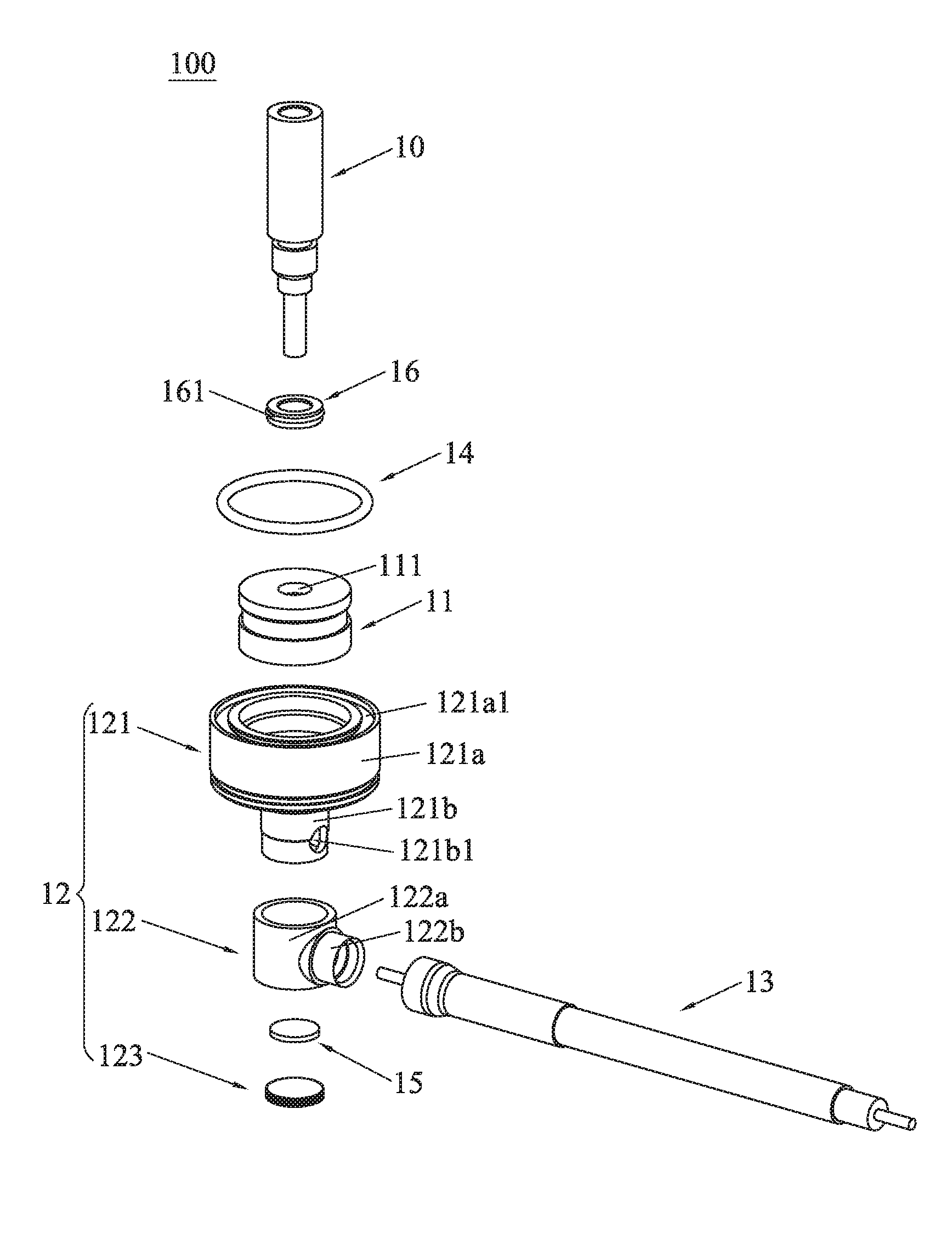

A connector adapted for a cavity filter of the present invention includes a contact pin, a first insulator, a housing and a transmission line, the first insulator is provided with a first locating hole, the housing shaped as a cylinder is provided with a second locating hole. During the assembly, no additional mounting slot is required. Less space is taken up by the cylindrical housing, which provides more space for the transmission line and makes the line connections easier therefore. Moreover, the assembly of the connector is simple and efficient, and the connector is in an integrated structure, and the components of the connector are connected by inserting or plugging, which reduces the welding points, thus the vibrations among the components are reduced and the accumulated assembly tolerances are reduced accordingly, thereby the communication quality is improved and the cost is decreased.
