Detection method and apparatus for reduced cross-talk and asic area of a fingerprint sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2017
Issued Date -
N/A
app pub date -
Oct 10, 2014
filing date -
Oct 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

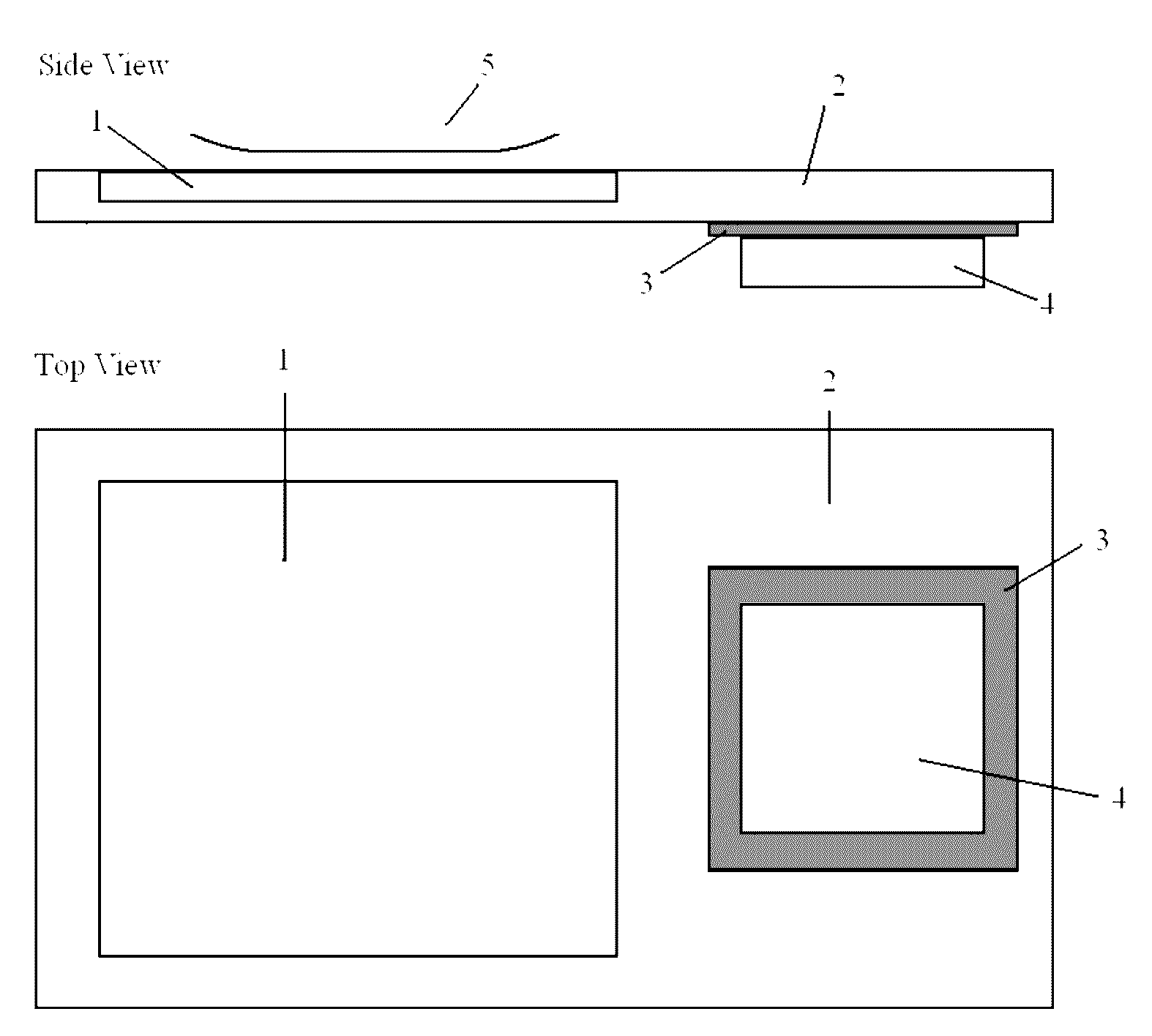

A method and apparatus for electrical detection of a finger print has a reduced number of interconnect signals between a sensor area and a substrate and an electronic circuit for excitation and detection of the finger print compared to a single-chip finger print sensor. The individual signals are connected internally at the sensor substrate in such a way that the response from the individual sensor elements can be separated from each other. Cross-talk is reduced by keeping the sensor outputs at a constant potential, thus eliminating the effect of capacitive coupling between different sensor outputs and also between sensor outputs and a ground or reference potential.
