Method for temporarily connecting two parts together, such as two stages of a space launcher, and assembly including two temporarily connected parts
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2017
Grant Date -
Feb 13, 2014
app pub date -
Apr 20, 2012
filing date -
Apr 26, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

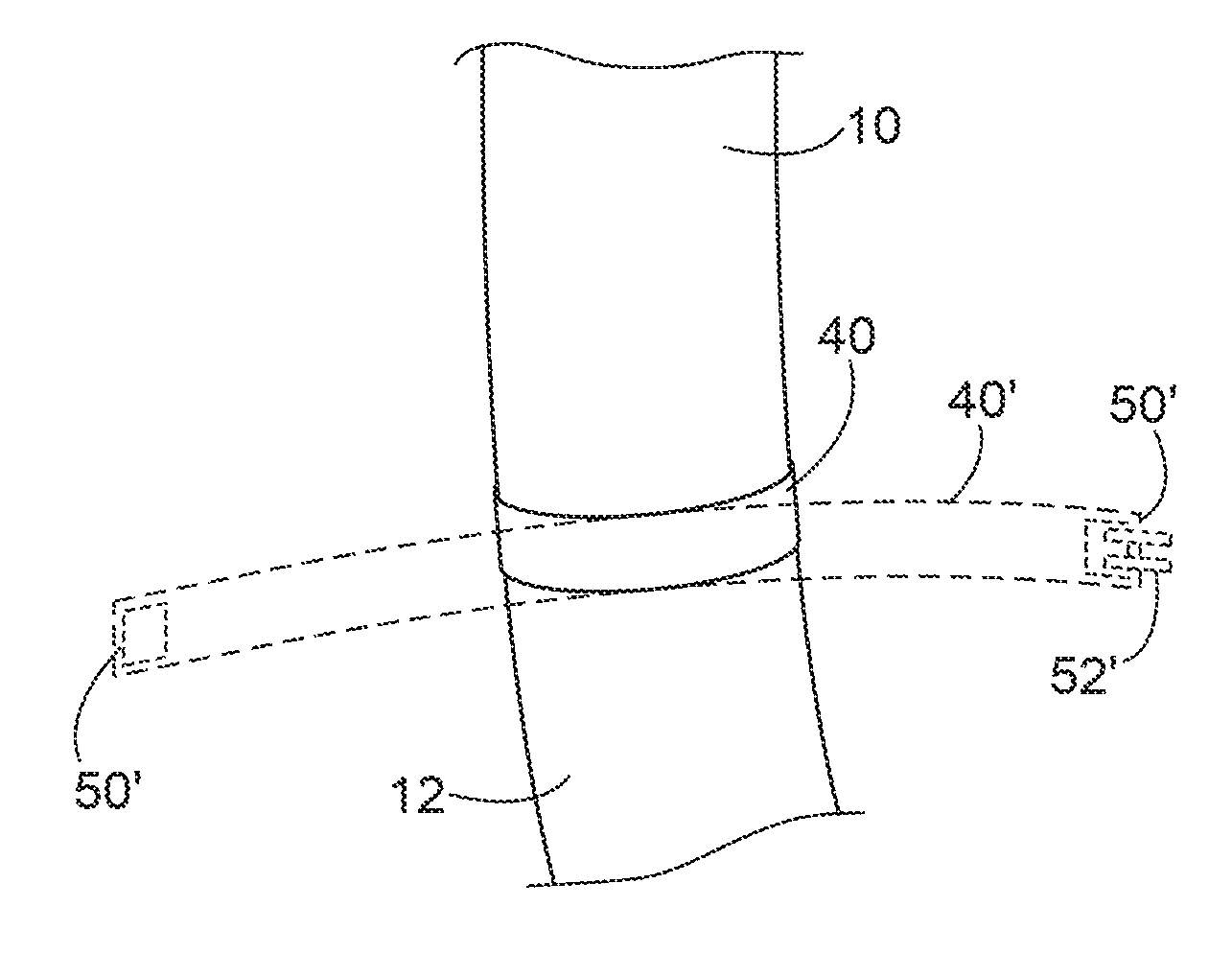

An assembly comprising two parts temporarily connected by a connecting element surrounding the assembly. The connecting element being subjected to an internal deformation stress. The assembly having stress-keeping means with controlled stress relief, which connect two opposite ends of the connecting element so as to counteract the internal deformation stress. The assembly includes attaching means for attaching the connecting element to each of the parts. The attaching means includes at least two layers of cured adhesive which respectively coat the parts and make a surface connection between each of these parts and the connecting element. The internal deformation stress is at a sufficient level to enable the connecting element to be unsecured from the parts by extending to a rest position, when the stress-keeping means are controlled so as to release the ends of the connecting element.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2012 Application Filing Year
- F16B Class
- 989 Applications Filed
- 688 Patents Issued To-Date
- 69.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16B Class
- 27.32 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 18, 2028 |
