Coolant recovery and waste separation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2017
Grant Date -
Jul 17, 2014
app pub date -
Aug 17, 2012
filing date -
Aug 19, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

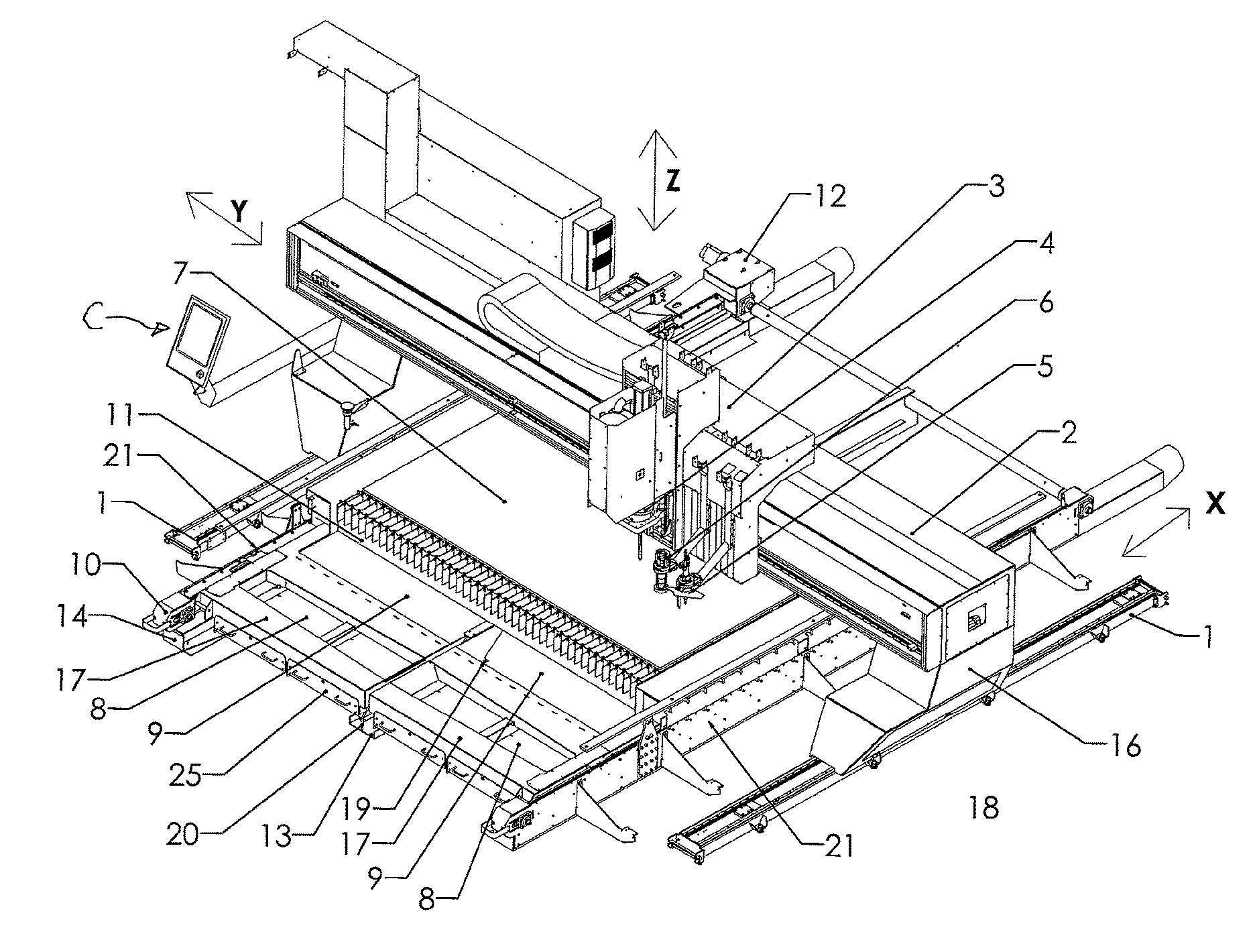

A machine is provided, including at least one thermal cutting head, and at least one machining head with a coolant, wherein the machine includes a plate support table which is configured to allow coolant to fall through, a gantry located above the table and configured to travel along length of the table in an X axis, a carriage which is movably mounted to the gantry to travel in a Y axis which is at right angles to the X axis, a machining head with a coolant supply and a thermal cutting head both mounted to the carriage, at least one trolley is located below the table, wherein the trolley supports a fume chamber and a coolant tray and wherein the trolley is configured to be capable in use of moving independently or synchronously with the machinery head or thermal cutting head as required to capture coolant and fumes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B23Q Class
- 581 Applications Filed
- 430 Patents Issued To-Date
- 74.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 31.14 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 18, 2028 |
