Lighting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Grant Date -
Mar 17, 2016
app pub date -
Dec 26, 2013
filing date -
Apr 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

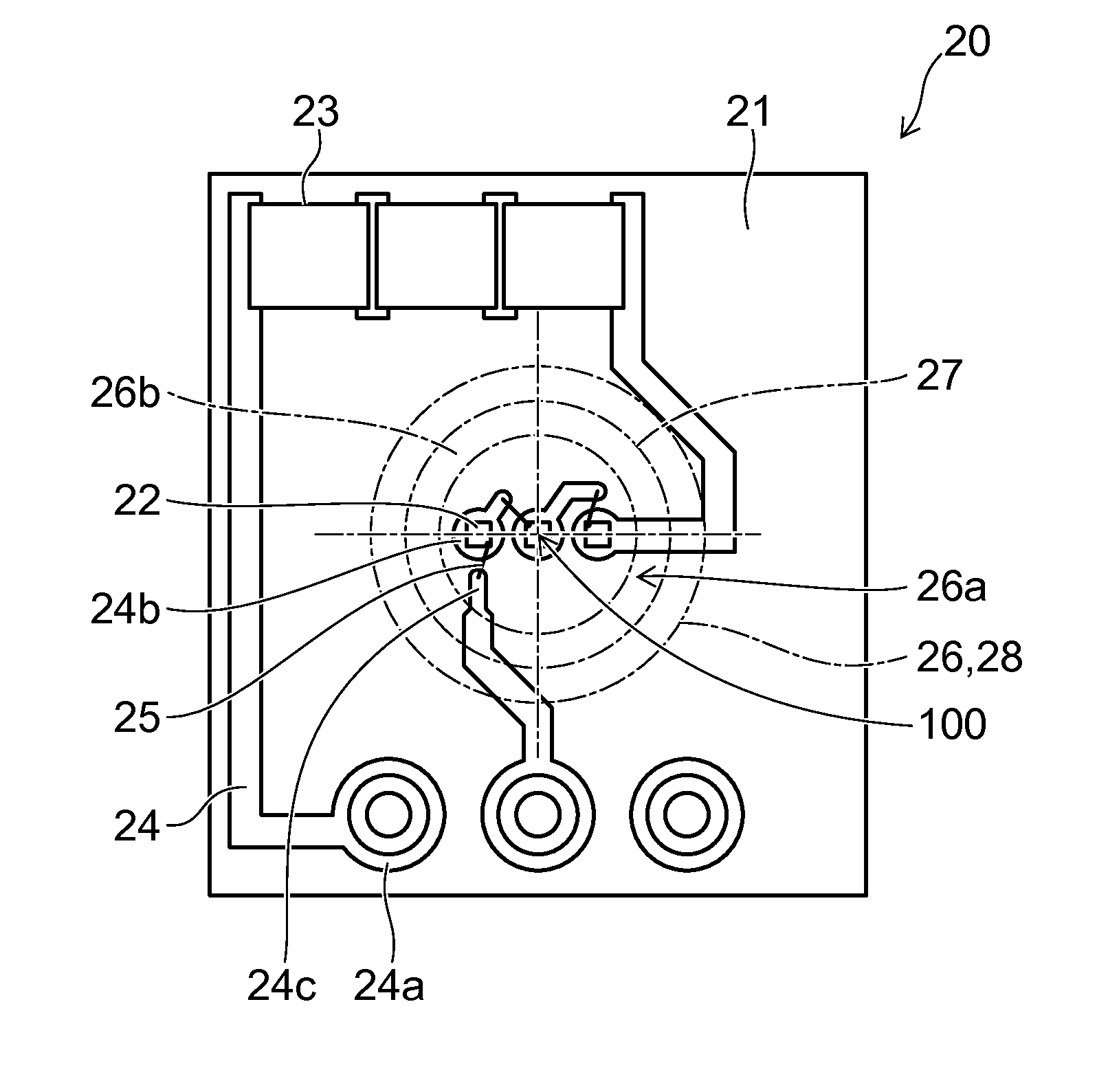

Disclosed is a lighting system including: a board; a wiring pattern that is provided on a surface of the board and has a wiring pad; a light emitting element that is provided on the wiring pattern and includes an electrode on a surface thereof opposite to a surface thereof provided on the wiring pattern; a surrounding wall member that is provided to surround the light emitting element; a wiring that connects the wiring pad and the electrode; and a sealing portion that is provided inside the surrounding wall member and covers the light emitting element and the wiring. Here, an angle that is formed by a segment that connects a central position of a portion of the board surrounded by the surrounding wall member and a position where the wiring is connected to the wiring pad, and the wiring is 0° to 45°, or 135° to 180°.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F21V Class
- 3052 Applications Filed
- 2652 Patents Issued To-Date
- 86.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F21V Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
