Magnet system for generation of a highly stable magnetic field
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Grant Date -
Mar 6, 2014
app pub date -
Aug 15, 2013
filing date -
Aug 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

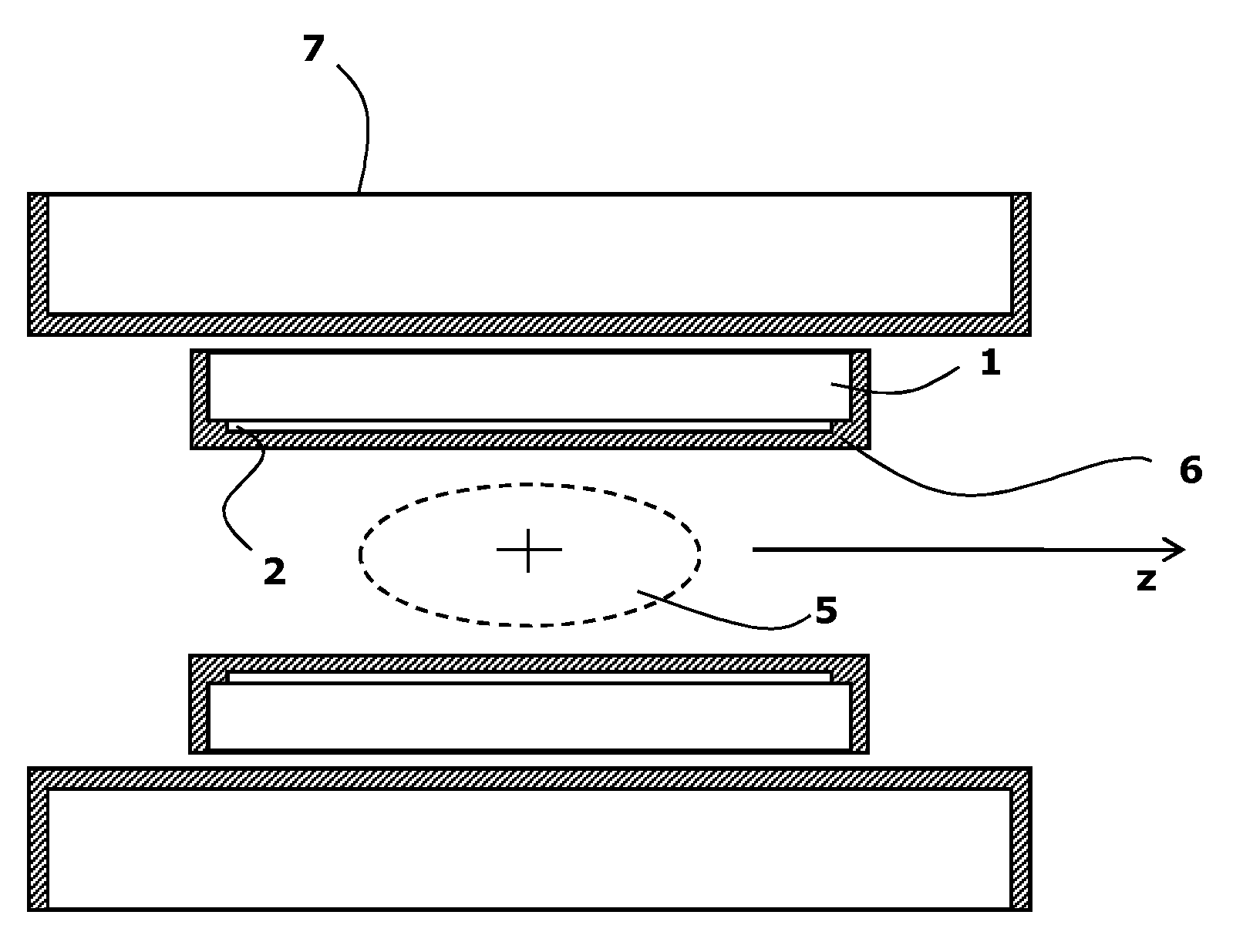

A magnet system generates a highly stable magnetic field at a sample location. The magnet system has a magnet cryostat housing a first superconducting magnet coil and a second magnet coil co-axial to the first magnet coil. The second magnet coil is short-circuited in a superconducting persistent mode during operation of the magnet system. An external power supply during operation supplies current to the first magnet coil via a current lead thereby generating a first magnetic field at the sample location that fluctuates according to the current noise of the power supply, wherein the second magnet coil is positioned and dimensioned in a way that it inductively couples to the first magnet coil such that it generates at the sample location a second magnetic field that compensates the fluctuations of the first magnetic field.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01R Class
- 15.81 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
