Hammer velocity measurement system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Issued Date -
N/A
app pub date -
Sep 28, 2015
filing date -
Oct 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

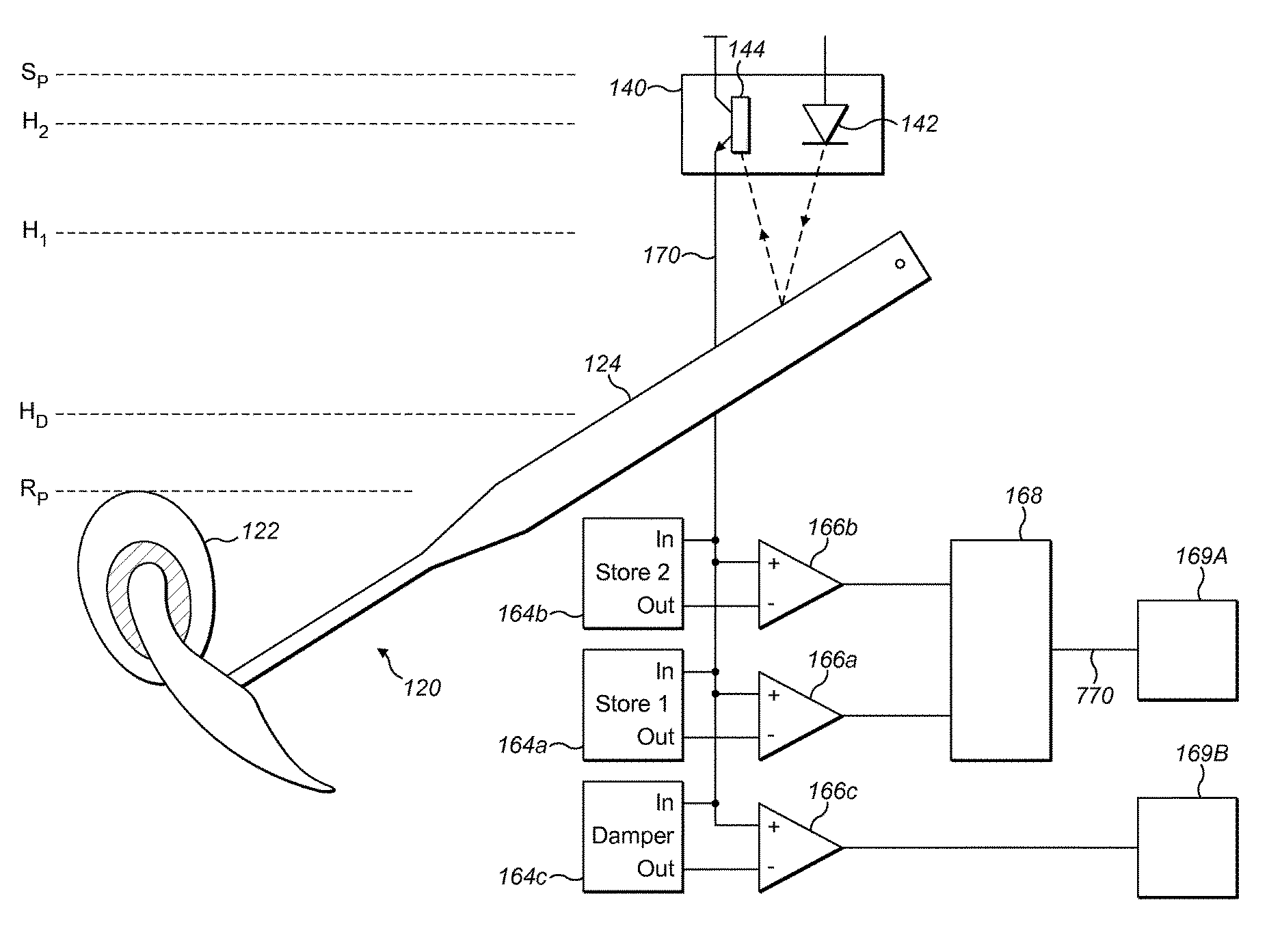

A system, for determining the velocity of a hammer of a keyboard instrument, with a light transceiver and processing circuitry. The light transceiver being configured to transmit a light signal to a hammer to measure a hammer velocity, receive a reflected light signal from the hammer indicative of the velocity of the hammer and send an electrical signal to the processing circuitry, where the electrical signal is based on the reflected light signal from the hammer. The processing circuitry being configured to receive and process the electrical signal so that a time interval between the electrical signal passing through a first trigger point and a second trigger point and the velocity of the hammer can be determined.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| GB | B | GB2565614 | Oct 02, 2014 |
| GB | B | GB2530784 | Oct 02, 2014 |
| US | B2 | US10037748 | Feb 21, 2017 |
| US | B2 | US10304428 | Jul 11, 2018 |
International Classification(s)
- 2015 Application Filing Year
- G10G Class
- 62 Applications Filed
- 45 Patents Issued To-Date
- 72.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
