User interface system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Issued Date -
N/A
app pub date -
Dec 18, 2014
filing date -
Jan 4, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

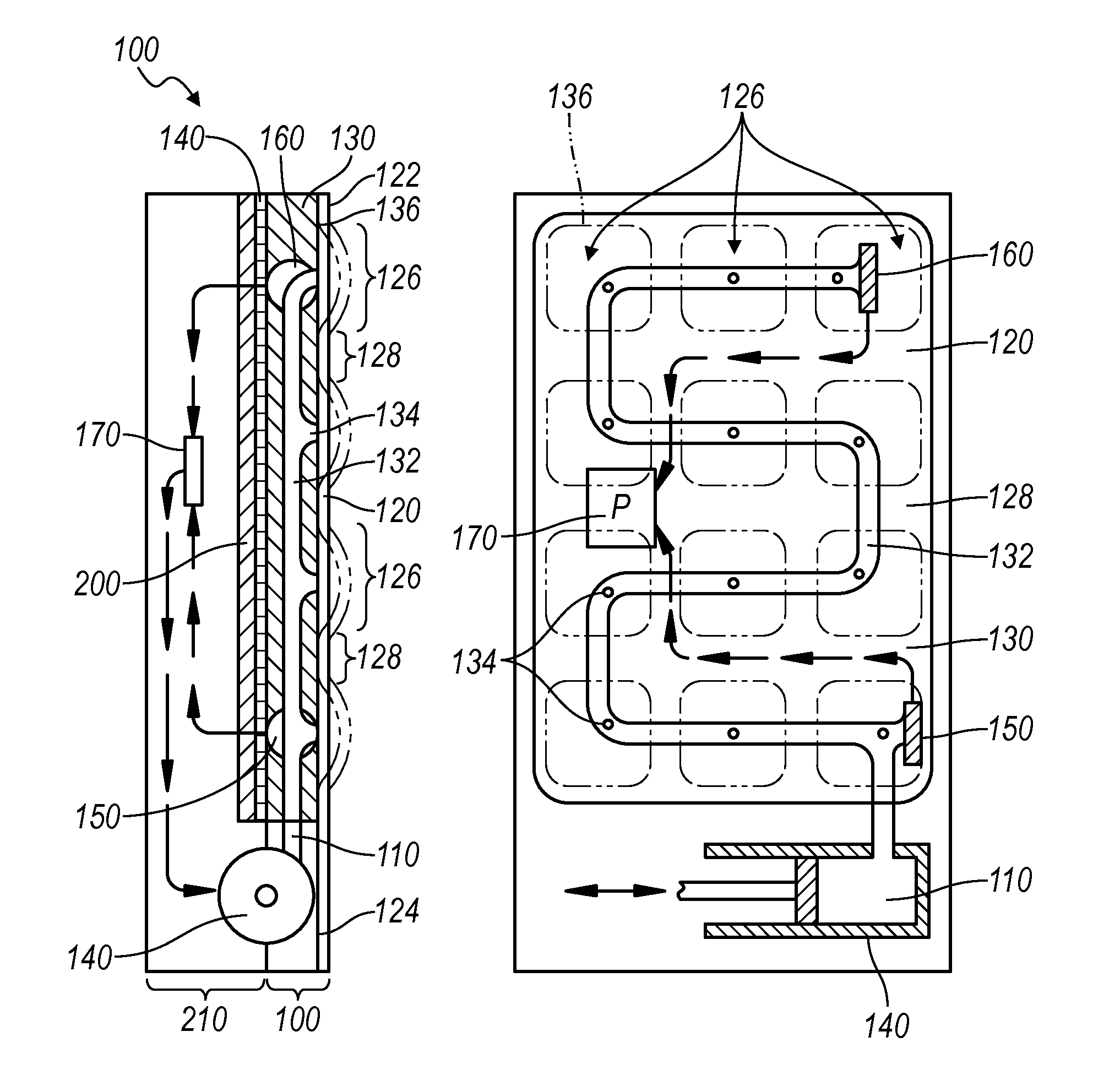

One embodiment of the user interface system comprises: A tactile layer defining a tactile surface touchable by a user and plurality of deformable regions operable between a retracted state, wherein the deformable regions are flush with an undeformable region of the tactile layer; and an expanded state, wherein the deformable regions are proud of the undeformable region. A substrate joined to the undeformable region and defining a fluid port per deformable region and a fluid channel. A displacement device displacing the fluid through the fluid channel and the fluid ports to transition the deformable regions from the retracted state to the expanded state. A first and a second pressure sensor detecting changes in fluid pressure within the fluid due to a force applied to a particular deformable region. A processor determining the particular deformable region to be location of the input force based upon the detected fluid pressure changes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01L Class
- 1143 Applications Filed
- 971 Patents Issued To-Date
- 84.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G01L Class
- 20.58 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
