Method for tapping a steel making furnace
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Issued Date -
N/A
app pub date -
Oct 29, 2014
filing date -
Oct 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

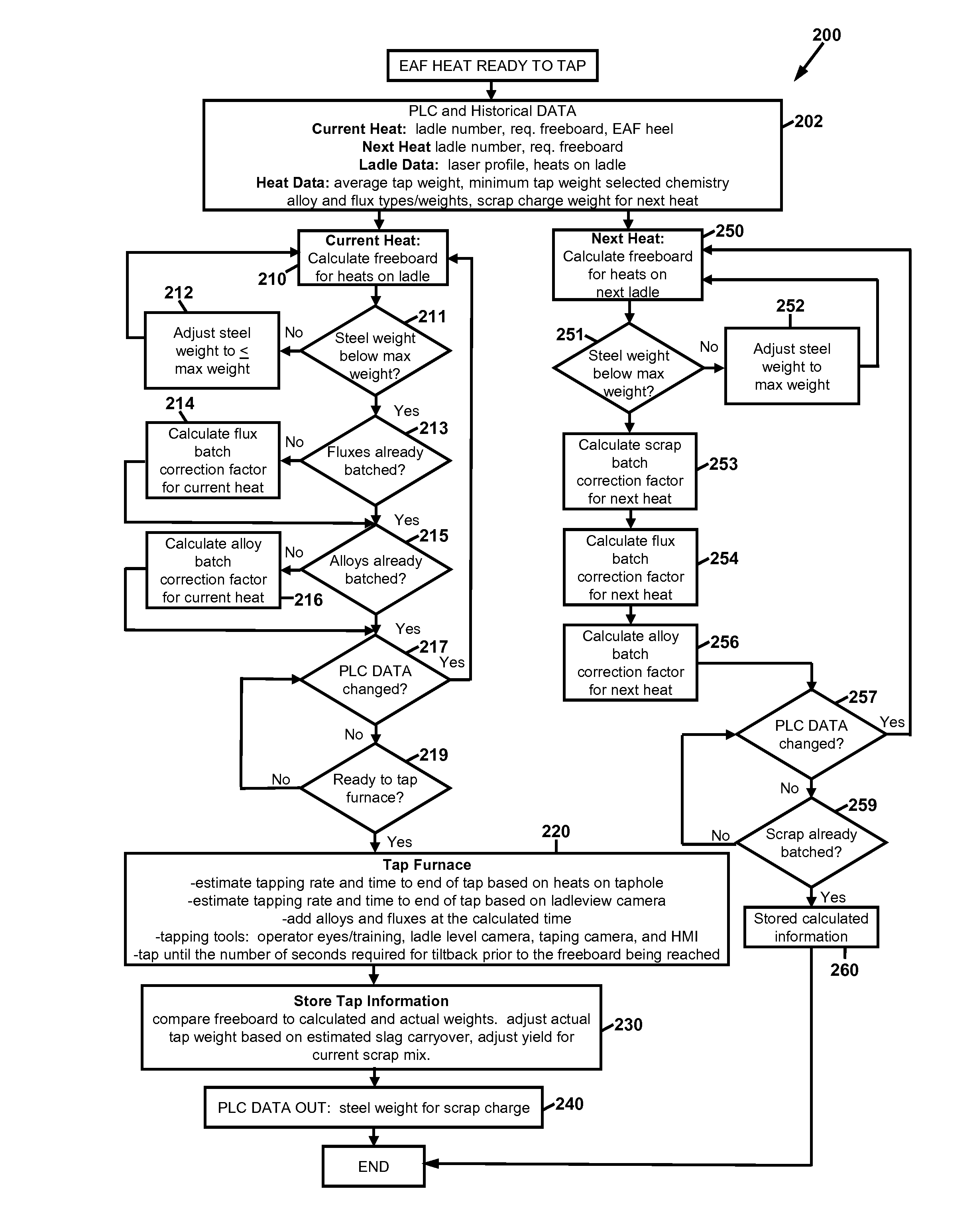

A method of tapping a steelmaking furnace comprised of determining a desired level of steel to be attained in a ladle, and calculating the weight of molten steel that will be present when the desired level is attained following a transfer of molten steel from the furnace to the ladle. The furnace is operated such that slag is formed on top of molten steel contained therein. The furnace is moved to a first position to cause transfer of molten steel to the ladle to begin. The transfer of molten steel from the furnace to the ladle is continued, and at the first occurrence of molten steel attaining the desired level in the ladle, molten steel attaining a maximum allowable weight in the ladle, or an excessive amount of slag being present upon the molten steel in the ladle, transfer of molten steel to the ladle is ceased.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- F27B Class
- 188 Applications Filed
- 154 Patents Issued To-Date
- 81.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F27B Class
- 29.81 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
