Artificial polypeptide fiber and method for producing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Issued Date -
N/A
app pub date -
May 30, 2012
filing date -
Jun 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

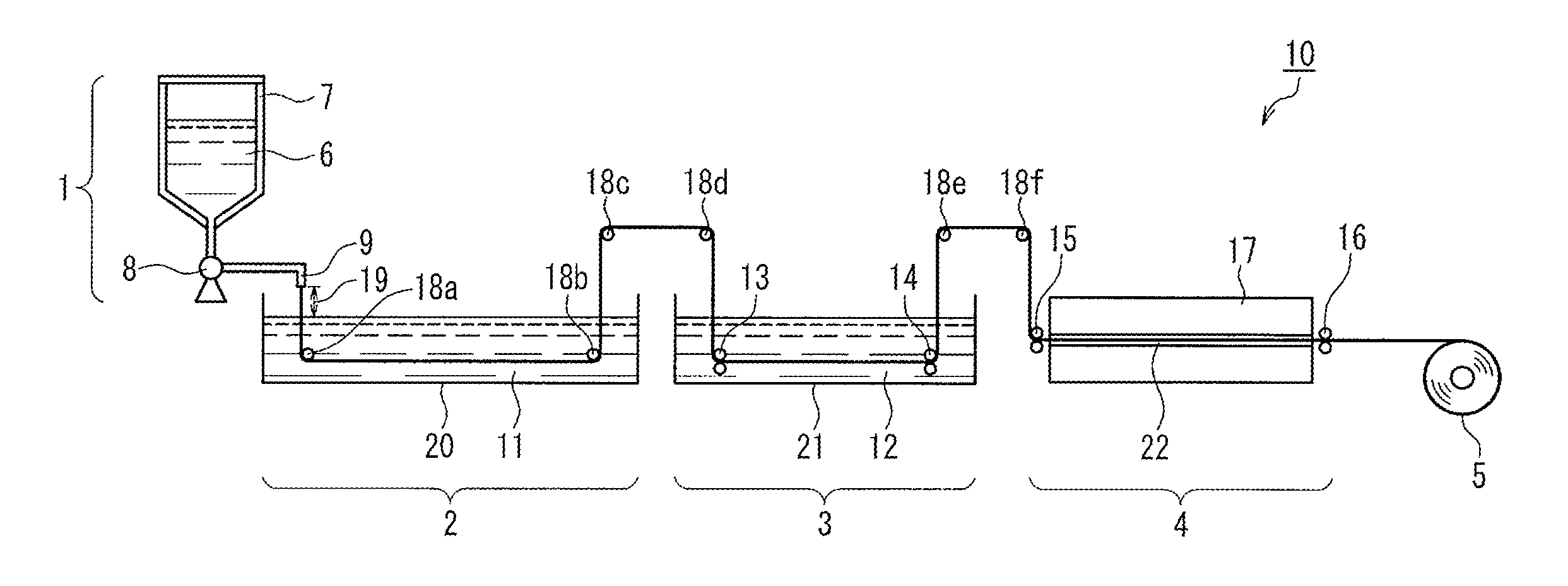

An artificial polypeptide fiber of the present invention is an artificial fiber containing a polypeptide as a main component, and has a stress of 350 MPa or more and a toughness of 138 MJ/m3 or more. A method for producing an artificial polypeptide fiber of the present invention is a method for producing the artificial polypeptide fiber obtained by spinning a spinning solution (6) containing a polypeptide derived from natural spider silk proteins and performing drawing of at least two stages. The drawing of at least two stages includes a first-stage drawing (3) in wet heat and a second-stage drawing (4) in dry heat. Thereby, the present invention provides high-toughness artificial polypeptide fibers having favorable stress and rupture elongation, and a method for producing the same.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- D01D Class
- 164 Applications Filed
- 142 Patents Issued To-Date
- 86.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D01D Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
