Image forming device and method for manufacturing can body on which image is formed
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 4, 2017
Issued Date -
N/A
app pub date -
Apr 19, 2012
filing date -
Apr 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

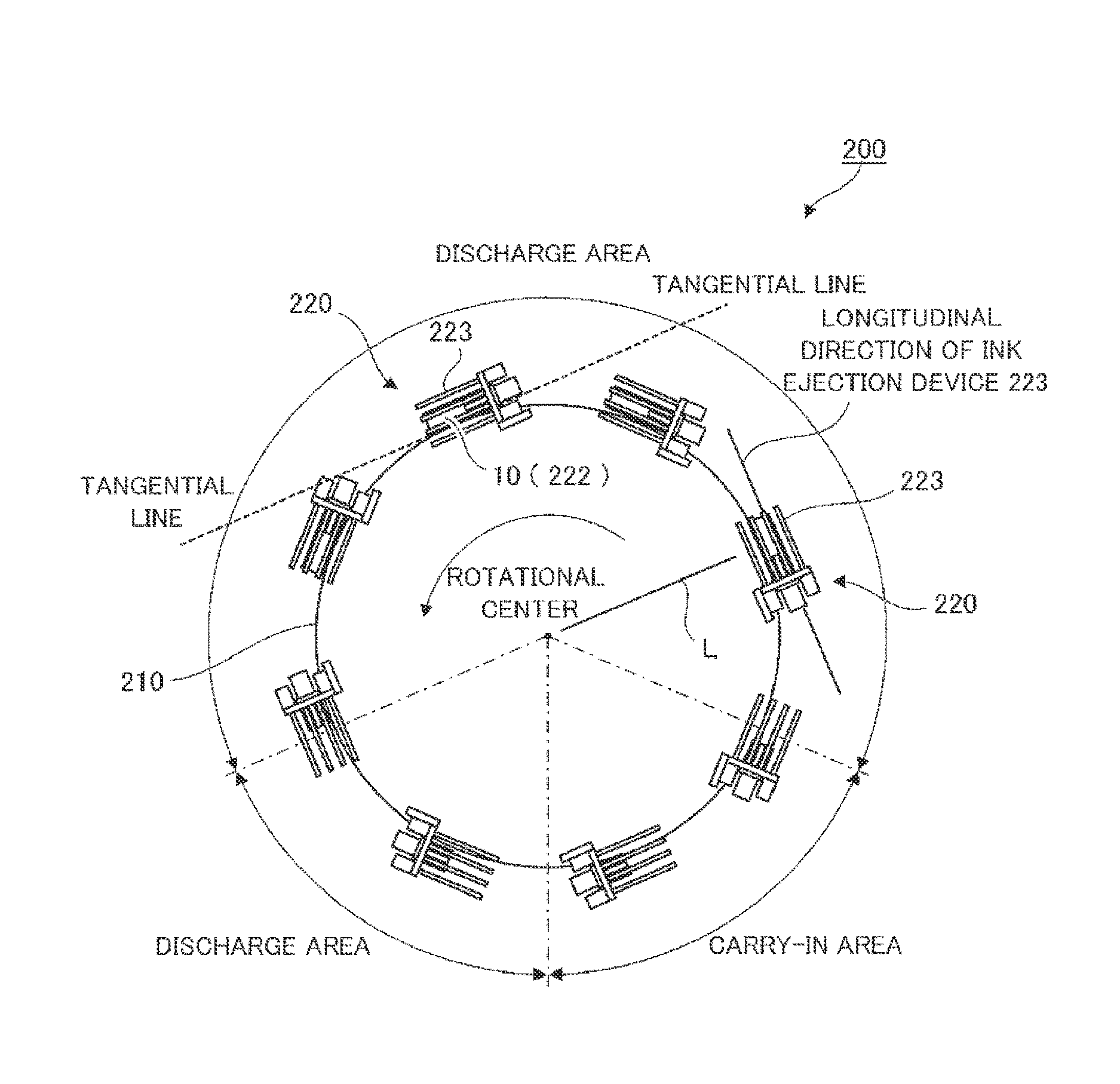

A printing device (1) is provided with: a can body conveying mechanism (100) for sequentially conveying can bodies (10); and a can body moving mechanism (200) for moving the can body (10) while forming an image onto the outer circumferential surface of the can body (10) conveyed by the can body conveying mechanism (100). The can body moving mechanism (200) is provided with a rotating member (210) formed in a disc shape and rotating in a clockwise direction in the drawing. The can body moving mechanism (200) is also provided with plural image forming units (220) provided on the rotating member (210) and forming an image onto the outer circumferential surface of the can body (10) while moving the can body (10). The image forming units (220) are each provided with plural ink ejection devices for ejecting ink onto the outer circumferential surface of the can body (10). This provides an image forming device capable of increasing the number of can bodies on each of which an image can be formed per unit time.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 4, 2028 |
