Chain saw cutter links
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 4, 2017
Issued Date -
N/A
app pub date -
Oct 31, 2014
filing date -
Oct 31, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

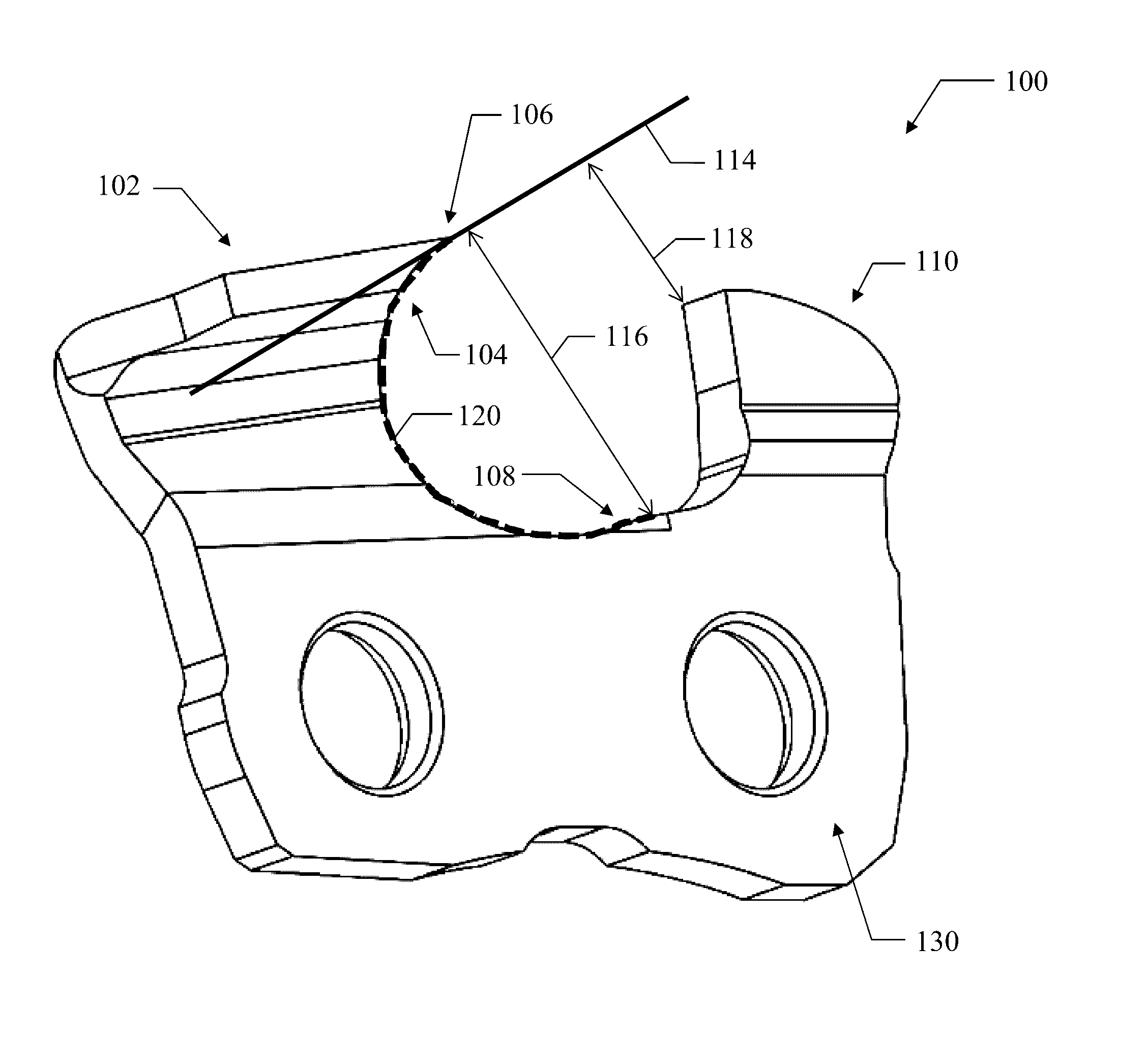

Embodiments of chain saw cutter links, and related apparatuses and methods. For example, in some embodiments, a cutter link may include a top plate, a sharpened surface having an upper end and a lower end, and a depth gauge having a top surface. The sharpened surface may define a reference line tangent to the sharpened surface at the upper end such that the reference line extends between the top plate and the sharpened surface, a sharpened width may be defined by a minimum distance between the reference line and the lower end of the sharpened surface, an opening width may be defined by a minimum distance between the reference line and the top surface of the depth gauge, and the sharpened width may be greater than the opening width.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B27B Class
- 127 Applications Filed
- 108 Patents Issued To-Date
- 85.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B27B Class
- 23.72 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 4, 2028 |
