Method and apparatus for separation of workpieces and articles produced thereby
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 4, 2017
Issued Date -
N/A
app pub date -
Sep 20, 2013
filing date -
Sep 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

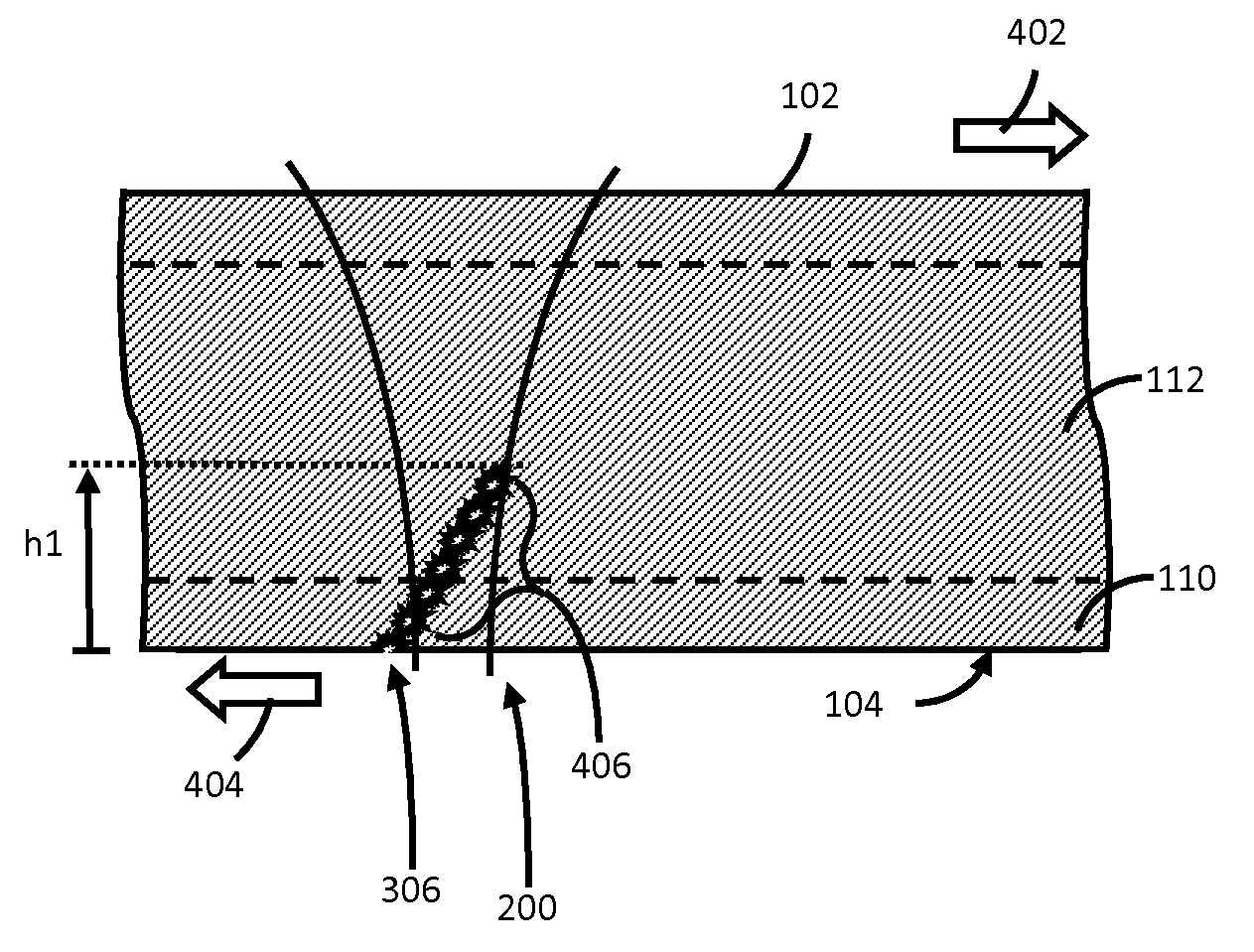

The present invention is a method for separating a workpiece from a common substrate. It includes the steps of providing the workpiece, generating, within a beam source, a beam of laser pulses configured to modify a portion of the workpiece, determining a depth for creating a modified region based upon a characteristic of the workpiece and modifying a plurality of regions within the workpiece to form a plurality of modified regions. Modifying the plurality of regions includes directing the beam of laser pulses from an output of the beam source onto the workpiece, causing relative motion between the workpiece and the output of the beam source while directing the beam of laser pulses onto workpiece, and modifying a characteristic of the pulses of the beam upon generating a number of pulses which generally correspond to creating the modified regions to the determined depth.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23K Class
- 1742 Applications Filed
- 1525 Patents Issued To-Date
- 87.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23K Class
- 28.92 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 4, 2028 |
