Two-phase fuel injection valve for diesel engine and gas engine including nozzle having pumping function
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 28, 2017
Grant Date -
Jun 6, 2013
app pub date -
Oct 28, 2010
filing date -
Jul 2, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

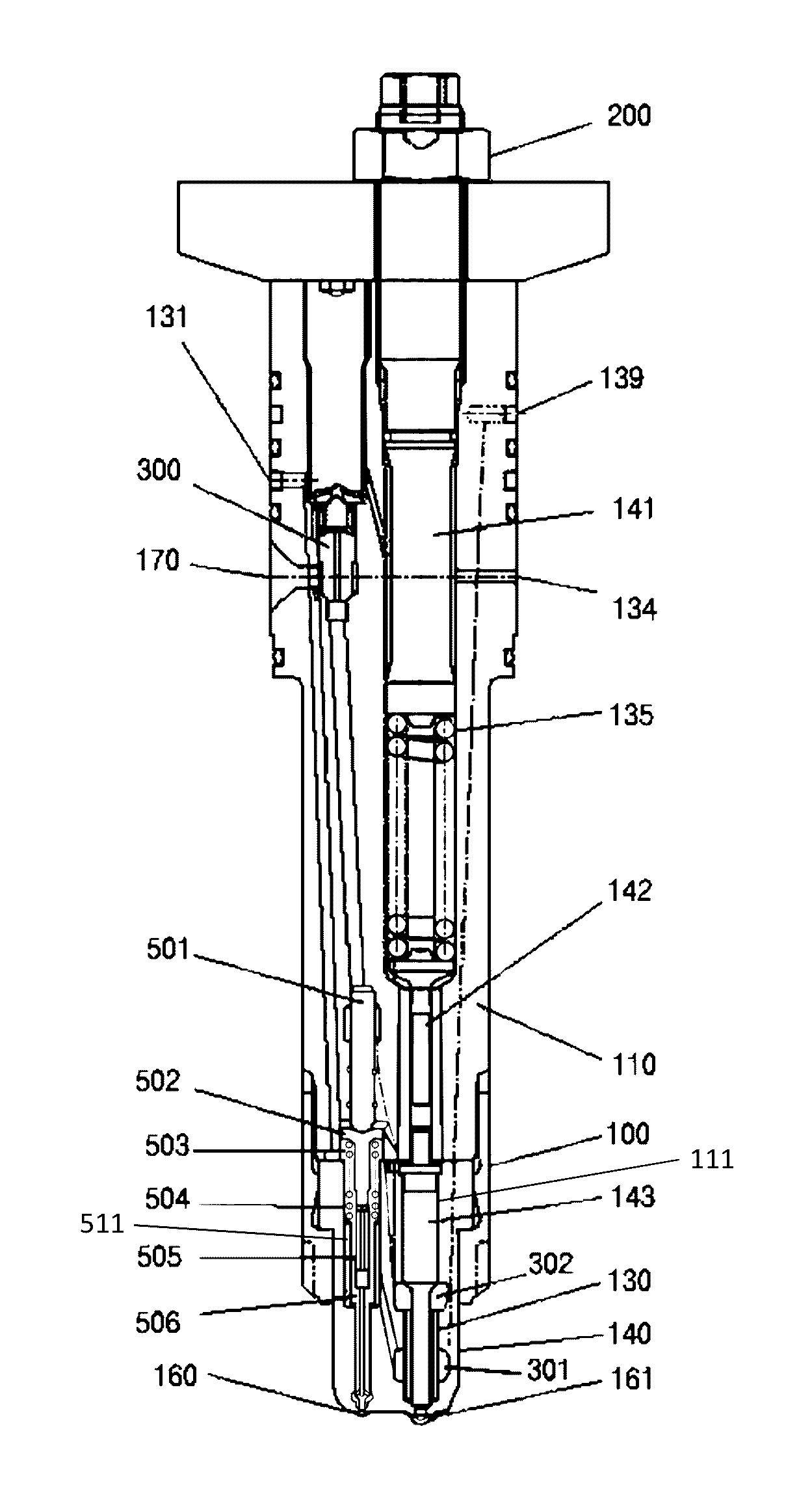

A dual fuel injection valve includes a primary fuel treatment space and a secondary fuel treatment space formed extending the fuel valve block and the hybrid nozzle block in the longitudinal direction and side by side with each other. The primary fuel treatment space includes a primary cylinder passage, a primary fuel passage and a primary nozzle hole. The secondary fuel treatment space includes a secondary cylinder passage formed separately form the primary cylinder passage, a secondary fuel passage formed separately form the primary fuel passage hole, a secondary nozzle hole. The dual fuel injection valve further includes a first chamber formed in a lower portion of the secondary cylinder passage, a second chamber disposed between the first chamber and the secondary nozzle hole and formed to surround the secondary cylinder passage, and a primary fuel movement hole connecting the primary cylinder passage and the second chamber.
