Gas lift valve with mixed bellows and floating constant volume fluid chamber
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 28, 2017
Grant Date -
Mar 20, 2014
app pub date -
Sep 9, 2013
filing date -
Sep 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

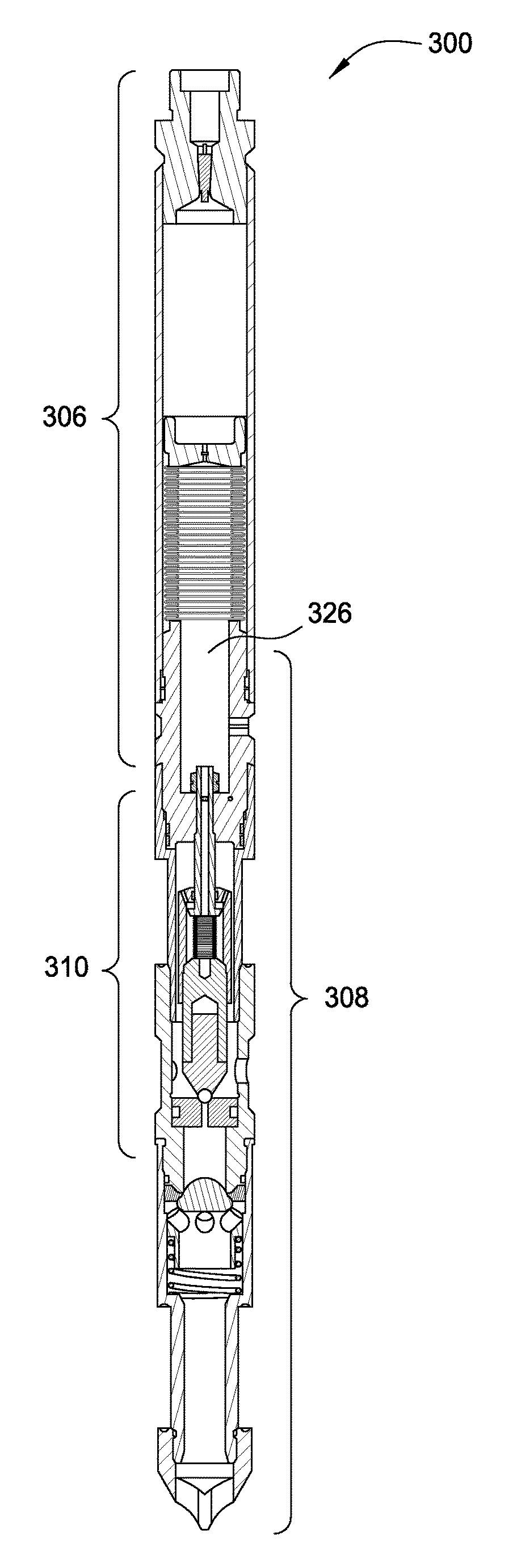

A valve apparatus capable of withstanding high pressures and techniques for using this apparatus in various suitable applications are provided. The valve apparatus typically includes both an upper bellows comprising a standard, convoluted bellows and a lower bellows comprising an edge-welded bellows. The valve apparatus may also include a floating, constant volume fluid chamber that travels with the lower edge-welded bellows as the lower bellows compresses and expands in an effort to protect the lower bellows from very high internal volume fluid pressure.
