Adjustable conveyor systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 28, 2017
Grant Date -
N/A
app pub date -
Dec 9, 2015
filing date -
Dec 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

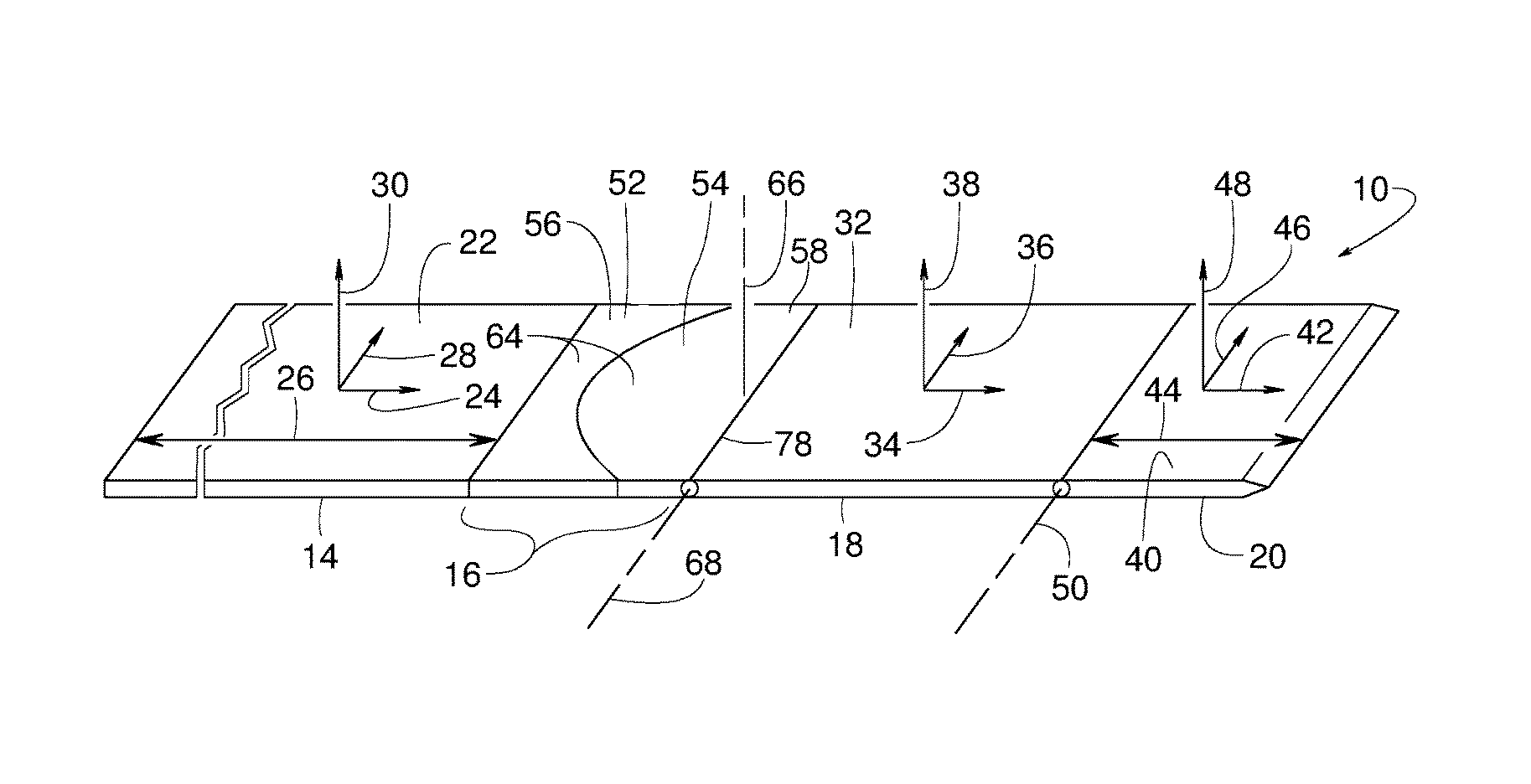

Example adjustable conveyor systems are disclosed herein. An example adjustable conveyor system includes a first conveyor having a first conveying surface facing upward and running lengthwise along a first longitudinal axis and a second conveyor having a second conveying surface facing upward and running lengthwise along a second longitudinal axis. The second conveyor is spaced apart from the first conveyor to define a span between the first conveyor and the second conveyor. The second conveyor is pivotal relative to the first conveyor. A first side guide protrudes upward and extends lengthwise between the first conveyor and the second conveyor proximate the span, where the first side guide has a first adjustable length. A second side guide protrudes upward and extends lengthwise between the first conveyor and the second conveyor proximate the span, where the second side guide has a second adjustable length. The first side guide is spaced apart from the second side guide to define a passageway between the first conveyor and the second conveyor. The first adjustable length automatically lengthens and the second adjustable length automatically shortens in reaction to the second conveyor pivoting relative to the first conveyor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B65G Class
- 26.43 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 28, 2028 |
