Compounds of imaging agent with HDAC inhibitor for treatment of Alzheimer syndrome and method of synthesis thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 28, 2017
Grant Date -
N/A
app pub date -
Oct 25, 2015
filing date -
Oct 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

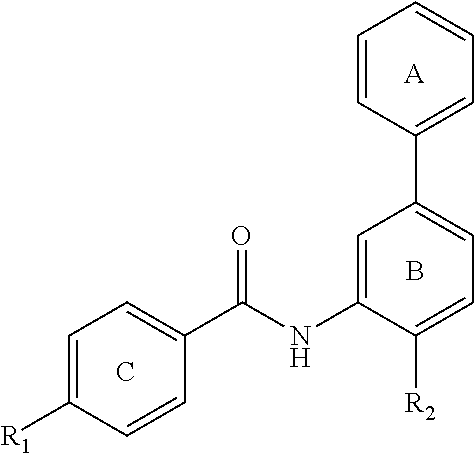

A method of synthesizing a compound of imaging agent with HDAC (histone deacetylase) inhibitor consists of two parts, the first part of the method is to provide the inhibitor of HDAC with a compound of imaging agent that includes HDAC inhibitor BNL-26 (C22H23N3O) and its analogs to be labeled with radionuclide F-18, producing a series of new nuclear medicine tracers: BNL-26-CH2CH218F, BNL-26a-CH2CH218FF, BNL-26b-CH2CH218F, BNL-26c-CH2CH218F and BNL-26d-CH2CH218F. These nuclear medicine with imaging agents can be used as a tracer in vivo binding to over-expression HDAC and produce a HDAC nuclear medicine imaging effect to serve for clinical diagnosis. The second part of the method is to provide a slightly adjusted a structural framework of BNL-26 and use pyridine to substitute the benzene ring of the BNL-26 structure, and then synthesize with other substituent to produce a series of additional 30 more HDAC inhibitors, named from Iner-1 to Iner-30 compounds.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61K Class
- 16157 Applications Filed
- 11882 Patents Issued To-Date
- 73.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- A61K Class
- 93.51 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 28, 2028 |
