Method and arrangement for the surge protection of inverters for photovoltaic systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 21, 2017
Grant Date -
Jul 31, 2014
app pub date -
Aug 21, 2012
filing date -
Sep 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

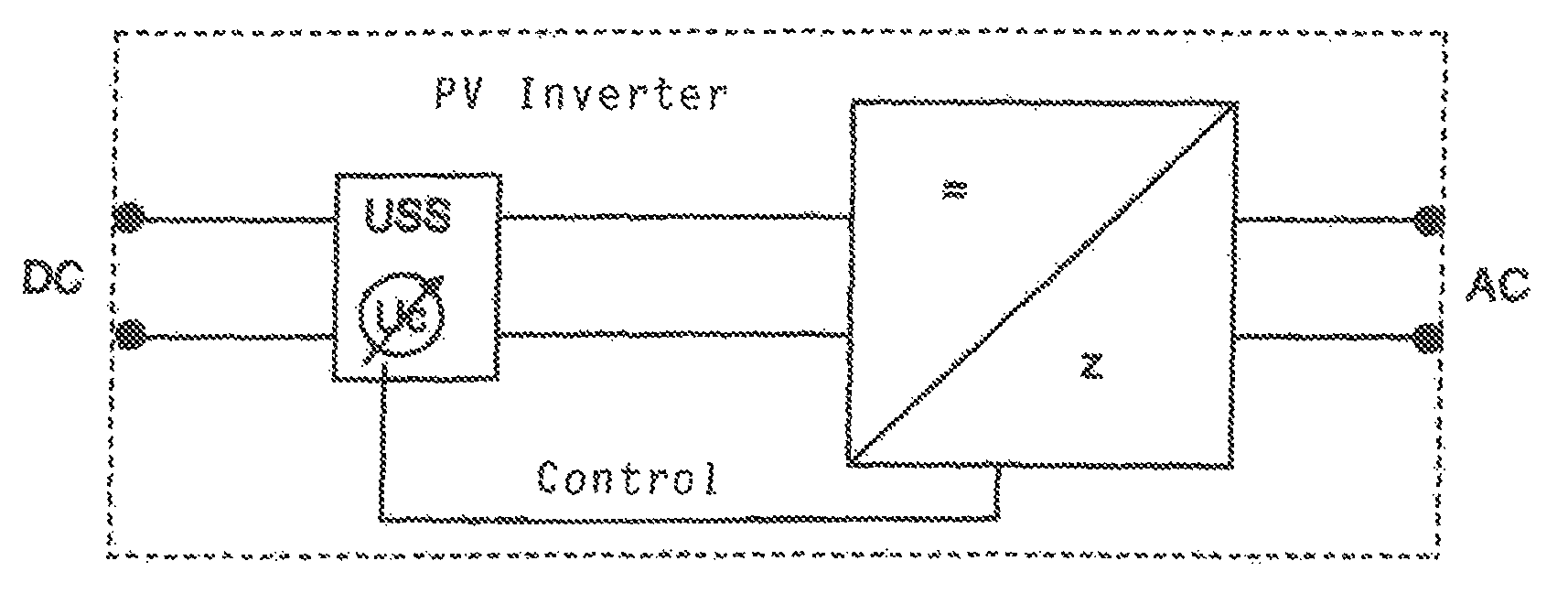

The invention relates to a method and an arrangement for the surge protection of inverters for photovoltaic systems, comprising at least one surge protection device which is physically integrated in the inverter or can be found in the vicinity of the inverter. The at least one surge protection device is connected to the DC side of the inverter. According to the invention, the inverter supplies a signal for setting or tracking the operating point at an operating level in the maximum power point (MPP) range, the response voltage of the surge protection device being predetermined, set, or selected on the basis of said signal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 21, 2028 |
