Carburetor with low flow rate fluid passage

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9599066
APP PUB NO 20150247476A1
SERIAL NO

14628326

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

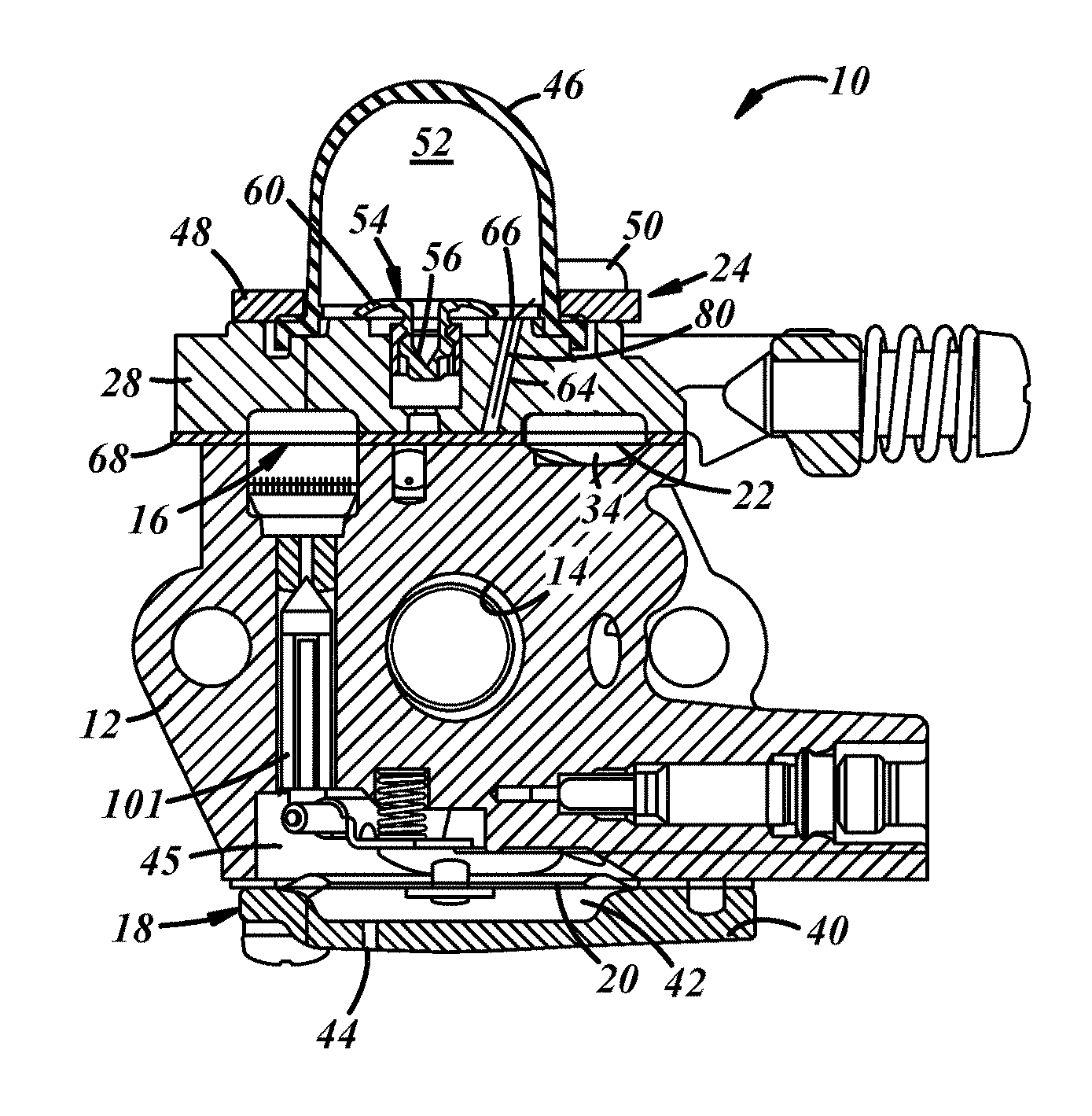

A carburetor including a body having a main bore through which a fuel and air mixture is discharged from the carburetor for use by an engine a priming passage communicated with the main bore, a pump that moves fluid into the priming passage, and a flow restrictor received within at least a portion of the priming passage to reduce the minimum effective flow area of the priming passage. The flow restrictor has a body received at least partially within the priming passage so that fluid flows around the flow restrictor and between the structure defining the priming passage and the flow restrictor.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
WALBRO LLC2015 W RIVER ROAD SUITE 202 TUCSON AS 85704

International Classification(s)

loading....
  • 2015 Application Filing Year
  • F02M Class
  • 1517 Applications Filed
  • 1207 Patents Issued To-Date
  • 79.57 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20152016201720182019202020212022202320240255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Burns, Michael P Millington, US 30 484

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 6 Citation Count
  • F02M Class
  • 17.36 % this patent is cited more than
  • 8 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges150635651021101 - 1011 - 2021 - 3031 - 4041 - 5051 - 60050100150200250300350400450500550600650700

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Sep 21, 2028
