Rolled magnesium alloy material, magnesium alloy structural member, and method for producing rolled magnesium alloy material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 21, 2017
Grant Date -
Nov 28, 2013
app pub date -
Feb 13, 2012
filing date -
Feb 14, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

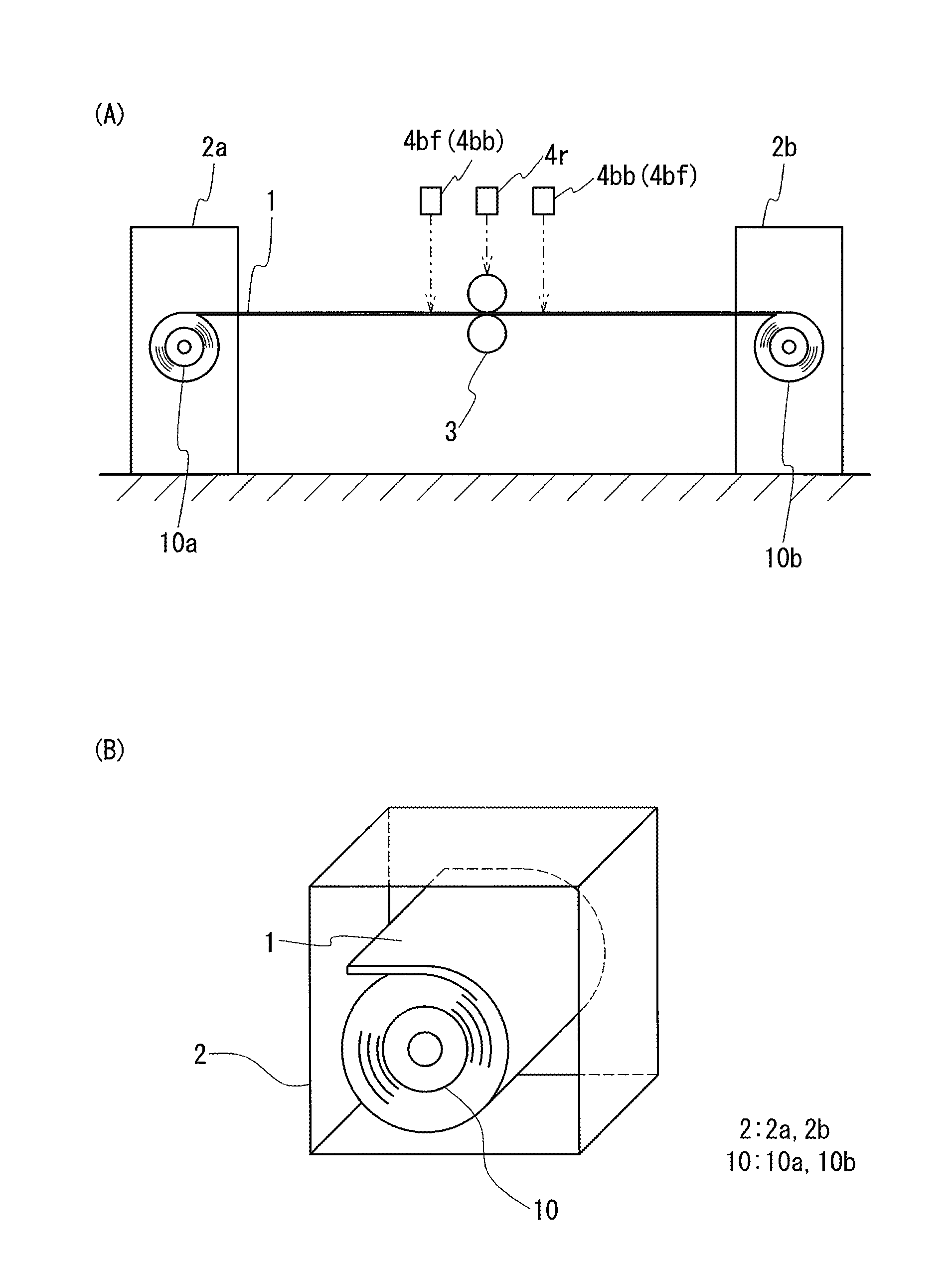

Provided are a rolled Mg alloy material whose mechanical properties are locally different in a width direction, a Mg alloy structural member produced by plastically working the rolled Mg alloy material, and a method for producing the rolled Mg alloy material. The method for producing a rolled Mg alloy material includes rolling a Mg alloy material with a reduction roll. The reduction roll has three or more regions in the width direction. The temperature is controlled in each of the regions so that a difference between a maximum temperature and a minimum temperature exceeds 10° C. in the width direction of a surface of the reduction roll. The rolled state in the width direction is varied by varying a difference in temperature over the width direction of the reduction roll. As a result, it is possible to produce a rolled Mg alloy material whose mechanical properties are locally different in the width direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- C22F Class
- 173 Applications Filed
- 143 Patents Issued To-Date
- 82.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C22F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 21, 2028 |
