Air preheating and NOx reduction integrated reactor and reaction method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 21, 2017
Issued Date -
N/A
app pub date -
Aug 22, 2014
filing date -
Jun 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

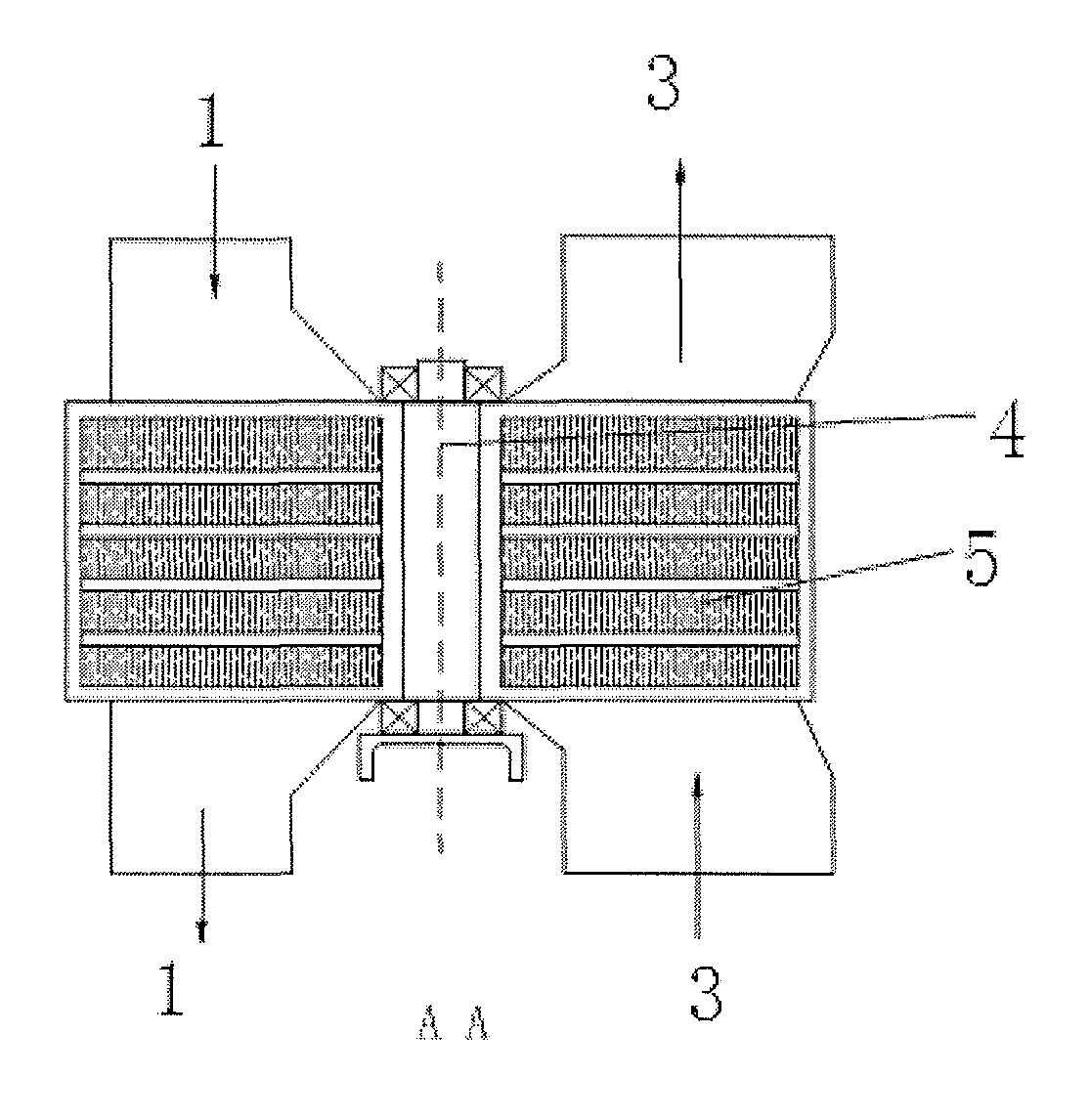

An air preheating and denitration integrated reactor and reaction method. The reactor includes a rotary catalyst body, housing arranged outside the rotary catalyst body, and gas inlet and outlet channels on upper and lower surfaces of the housing; the gas inlet and outlet channel is in divided three, namely flue gas, reductant, and air inlet and outlet channels, the rotary catalyst body is cylindrical and includes a central shaft rotor and multiple circular catalyst layers rotate around the central shaft rotor, each circular catalyst layer is divided into air, flue gas and reductant zones by a radial sealing plate and axial sealing plate. In each circular catalyst layer, a catalyst in the reactor alternately circulates in flue gas, reductant and air zones. The catalyst performs heating-reheating-cooling process on catalyst layers along with the reactor rotation, different temperatures and reaction atmospheres in zones conductive of air preheating and denitration.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C01B Class
- 1554 Applications Filed
- 1323 Patents Issued To-Date
- 85.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C01B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 21, 2028 |
