Bottom ash dewatering system using a remote submerged scraper conveyor

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9593850
APP PUB NO 20110226194A1
SERIAL NO

12913157

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

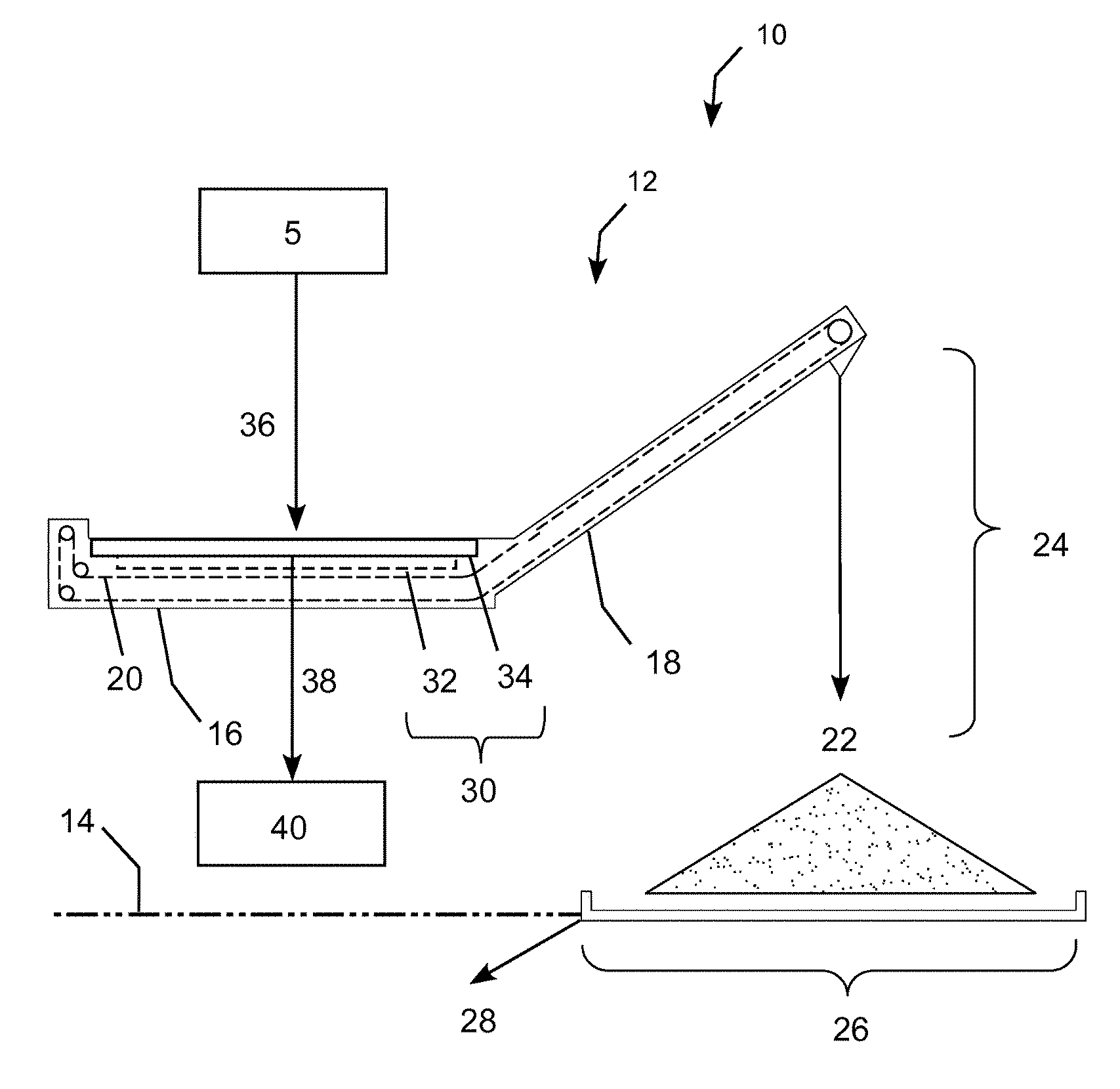

Remote submerged scraper conveyor (SSC) consists of a conventional SSC modified to include a slurry processing system, which allows it to be located remotely from associated boilers at or slightly above grade level rather than directly under a boiler like a conventional SSC. The slurry processing system includes a pair of overflow troughs 34 and associated weirs located exterior to and along the top edge of each side of the horizontal section of the SSC and an underflow baffle, which extends from a position above the water line down into the horizontal section of the SSC below the water line. The slurry processing system allows the Remote SSC to receive a high volume wet ash slurry discharge via a slurry discharge pipe conventionally sent to an ash pond or a tall dewatering bin system.

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
DELTA DUCON LLC33 SPROUL ROAD MALVERN PA 19355

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Mooney, Gary D Phoenixville, US 2 13

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Sep 14, 2028
Fee Large entity fee small entity fee micro entity fee
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
