Optoelectronic module with improved optical system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 14, 2017
Grant Date -
Feb 5, 2015
app pub date -
Jul 5, 2012
filing date -
Jul 18, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

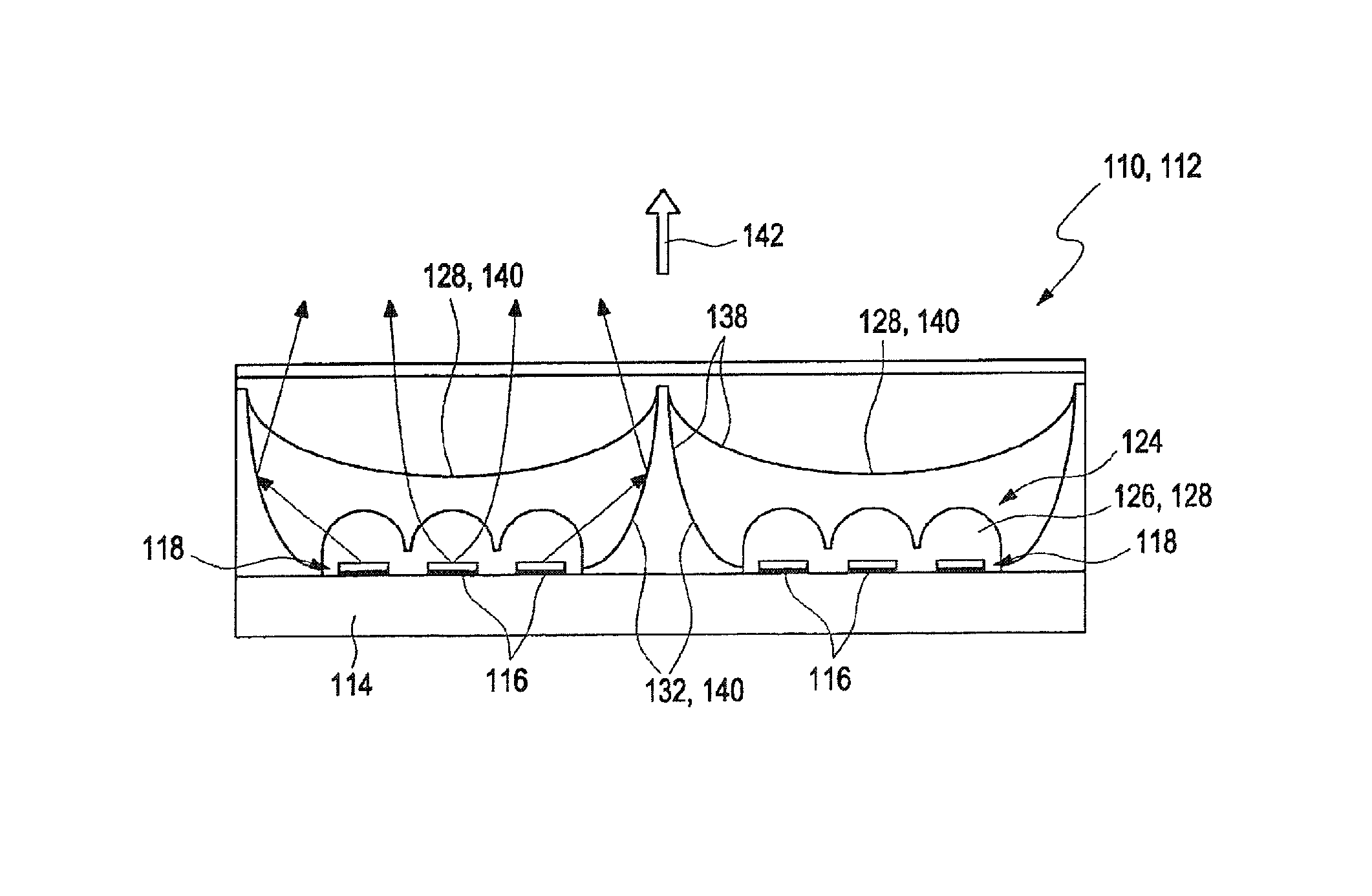

The invention relates to an optoelectronic module (112), more particularly to an optoelectronic chip-on-board module (114). The optoelectronic module (112) comprises a substrate (116), wherein the substrate (116) has a planar design. Furthermore, the optoelectronic module (112) comprises a plurality of optoelectronic components (118) that are arranged on the substrate (116). The optoelectronic module (110) further comprises at least one optical system (120) applied onto the substrate (114), more particularly a microoptical system having a plurality of microoptical elements. The optical system (120) comprises at least one primary optical system (124) that is adjacent to the optoelectronic components (116) and at least one secondary optical system (138).
