Cementing a wellbore using cementing material encapsulated in a shell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 14, 2017
Grant Date -
Dec 8, 2016
app pub date -
Aug 2, 2016
filing date -
Oct 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

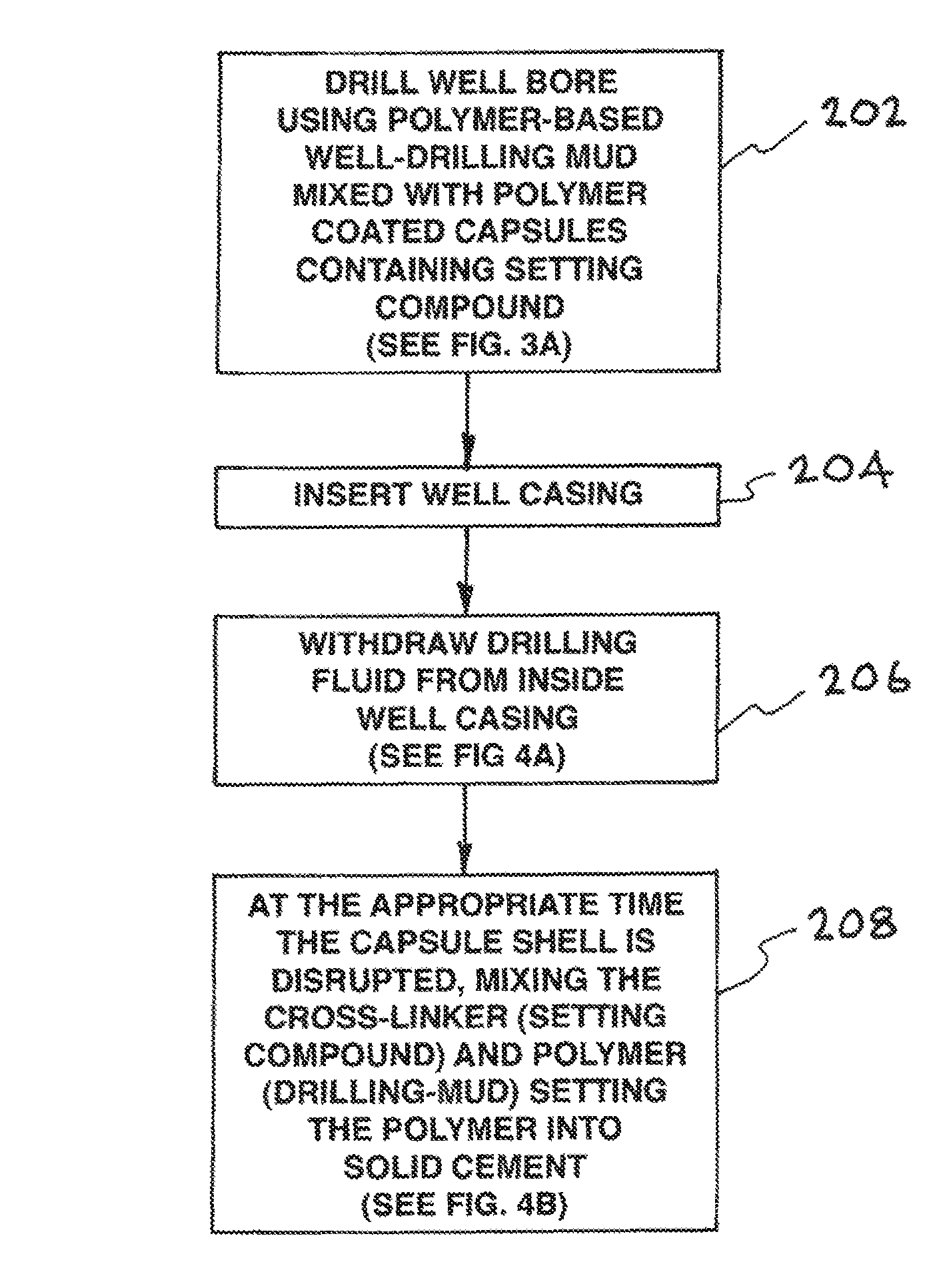

A system for cementing a wellbore penetrating an earth formation into which a pipe extends. A cement material is positioned in the space between the wellbore and the pipe by circulated capsules containing the cement material through the pipe into the space between the wellbore and the pipe. The capsules contain the cementing material encapsulated in a shell. The capsules are added to a fluid and the fluid with capsules is circulated through the pipe into the space between the wellbore and the pipe. The shell is breached once the capsules contain the cementing material are in position in the space between the wellbore and the pipe.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- C09K Class
- 3076 Applications Filed
- 2094 Patents Issued To-Date
- 68.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C09K Class
- 24.18 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 14, 2028 |
