Walk-behind compaction roller incorporating noise reduction measures
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 14, 2017
Issued Date -
N/A
app pub date -
Mar 27, 2015
filing date -
Mar 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

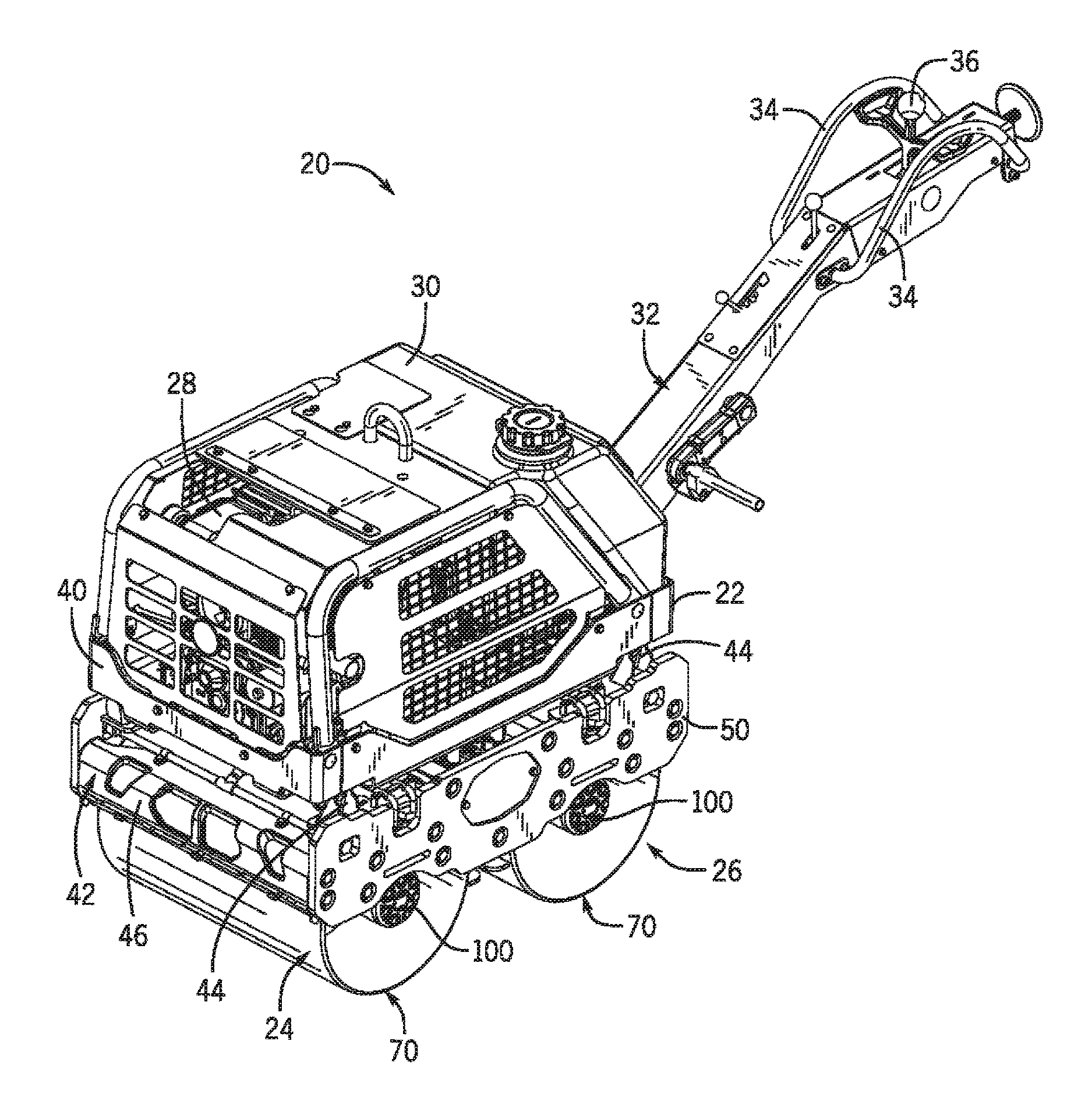

A vibratory compaction roller has a pretensioning mechanism that exerts a pretension or biasing force between the drum and the motor housing that inhibits relative axial movement between the output shaft of each drive motor and the associated motor housing, thus significantly reducing the generation of noise that would otherwise be created during machine operation. The pretensioning mechanism may take the form of one or more springs positioned between the drum and a drum support that also supports the motor. Bushings are provided between the springs and the drum to accommodate rotational motion between each spring and the drum. Alternatively, the pretensioning mechanism may be provided on a side of the drum opposite the motor and may pull the drum away from the motor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16C Class
- 32.16 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 14, 2028 |
