Air cushioned landing system for air vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 14, 2017
Grant Date -
Mar 26, 2015
app pub date -
Sep 22, 2014
filing date -
Sep 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

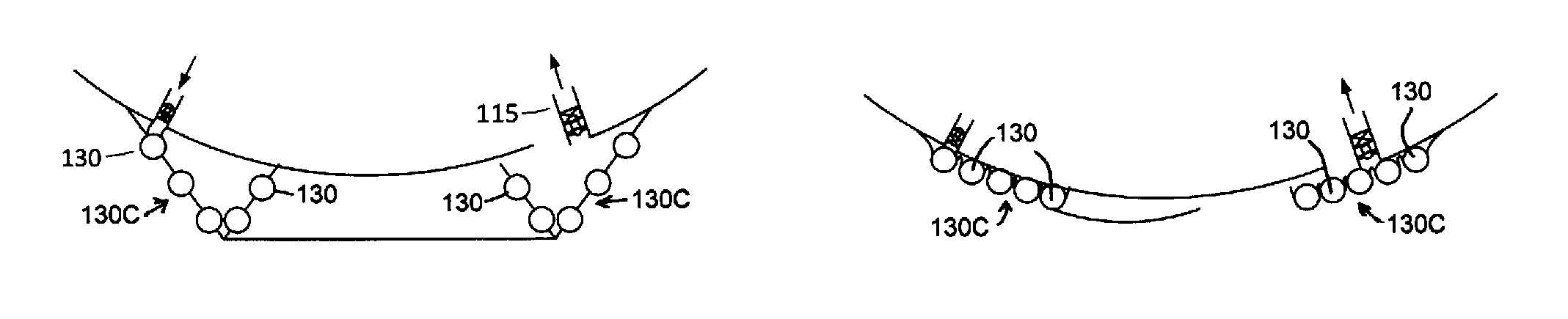

An air cushioned landing system for an air vehicle comprises an inflatable and deflatable skirt (113) in the form of a tube having inner (101) and outer (100) walls. The inner wall defines a central plenum (116) within the skirt, the skirt including gas pockets (130) arranged to stiffen one or more regions of at least one of the inner (101) and outer (100) sidewalls during deflation of the skirt. A gas pocket fan inflates the gas pockets prior to and during deflation of the skirt, wherein the gas pockets are constrained to move from a mutually spaced apart position when the skirt is inflated, to a mutually closely adjacent position when the skirt is fully deflated.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60V Class
- 6 Applications Filed
- 4 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60V Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 14, 2028 |
