Image reading apparatus having a blast mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Grant Date -
Jun 30, 2016
app pub date -
Dec 16, 2015
filing date -
Dec 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

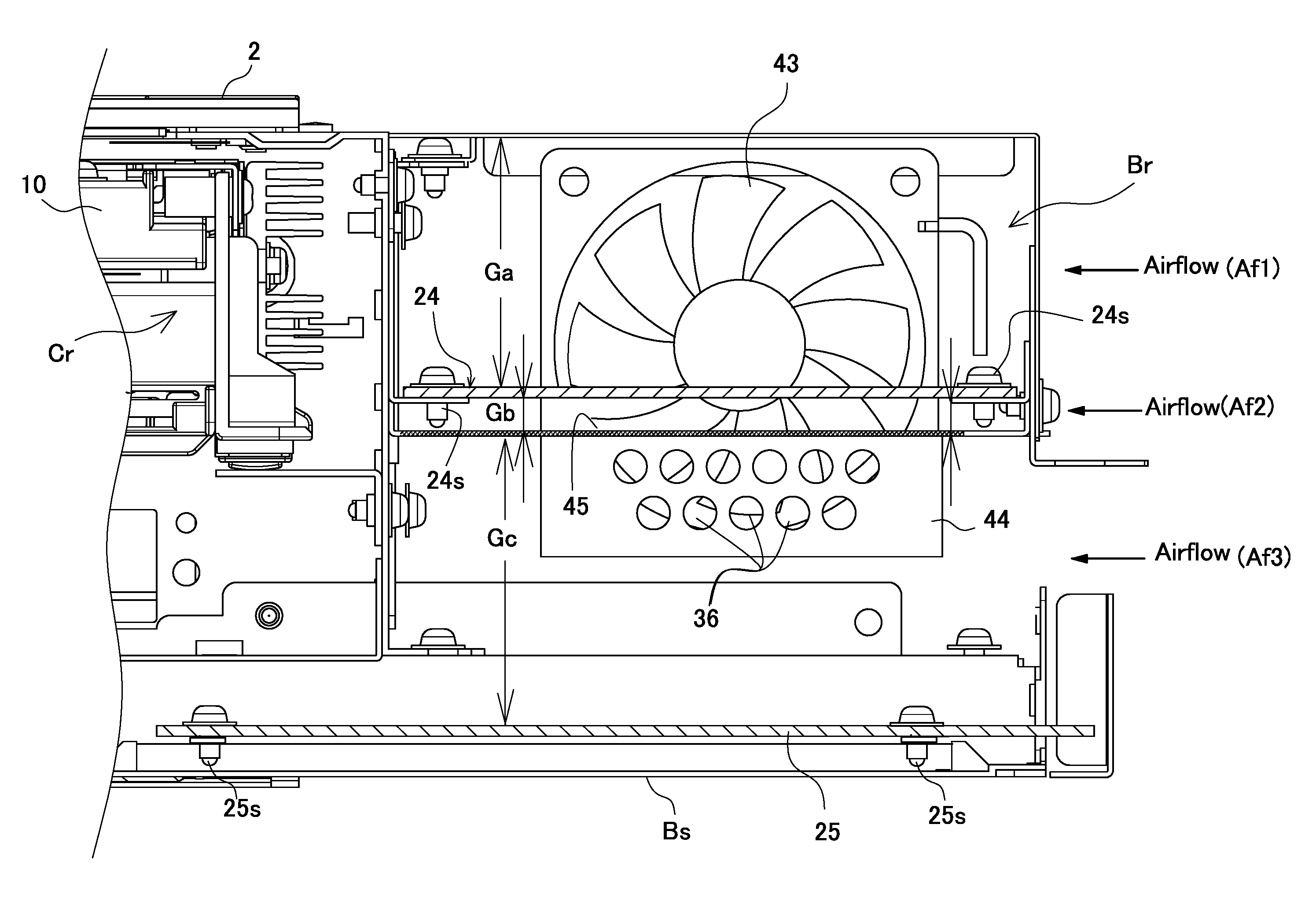

A blast mechanism in an image reading apparatus reliably cools heat generated in boards by a blast path with high cooling action among a plurality of boards disposed inside a casing. A partition plate is disposed between a plurality of boards disposed at a distance away in a layered shape, a first blast path is formed between a top of the casing and a first board, a second blast path is formed between the first board and the partition plate, a third blast path is formed between the partition plate and a second board, and a flow of cooling air is formed in each blast path with a blast fan. A blast mechanism for sending cooling air includes the casing, first and second boards disposed vertically inside the casing, the partition plate disposed between the first board and the second board, and fans for sending cooling air.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04N Class
- 17427 Applications Filed
- 14242 Patents Issued To-Date
- 81.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
