Modulated signal generating device and wireless device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Grant Date -
Aug 4, 2016
app pub date -
Oct 14, 2015
filing date -
Feb 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

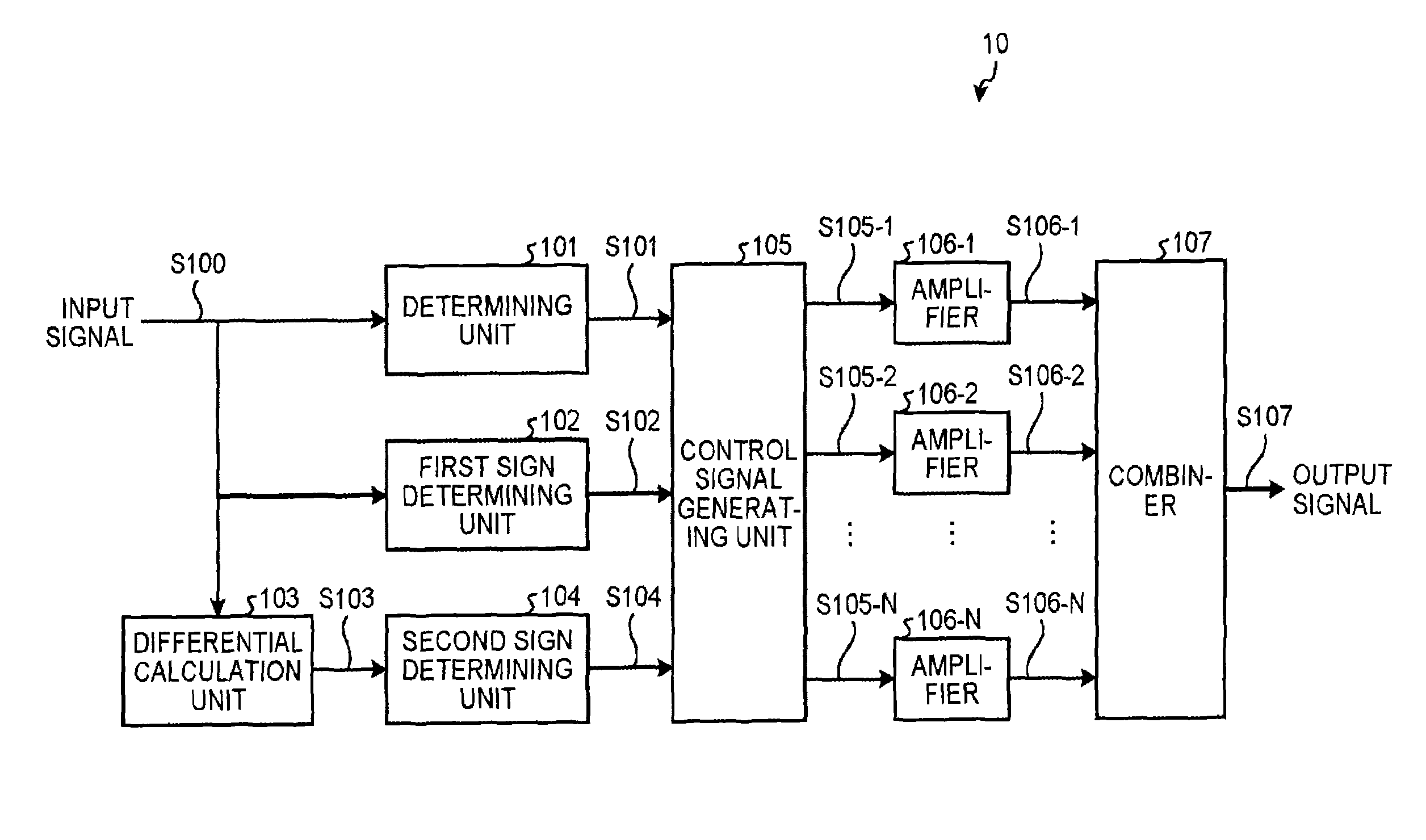

According to an embodiment, the modulated signal generating device modulates an input signal and generates an output signal. The modulated signal generating device includes a plurality of amplifiers, a combiner, a determining unit and a control signal generating unit. The plurality of amplifiers connects in parallel with one another and each configures to drive based on a control signal and to generate amplified signals. The combiner configures to combine the amplified signals and to obtain the output signal having a stepwise waveform. The determining unit configures to determine number of amplifiers to be driven based on a value of the input signal in a period shorter than a period of the input signal. The control signal generating unit configures to select zero or more amplifiers to be driven from among the amplifiers, based on the number of amplifiers determined by the determining unit, the value of the input signal, and a fluctuation in the value of the input signal, and to generate the control signal for driving the selected amplifier.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04L Class
- 33706 Applications Filed
- 25909 Patents Issued To-Date
- 76.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04L Class
- 11.47 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
