Battery state-of-charge aggregation method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Grant Date -
Oct 30, 2014
app pub date -
Mar 20, 2014
filing date -
Apr 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

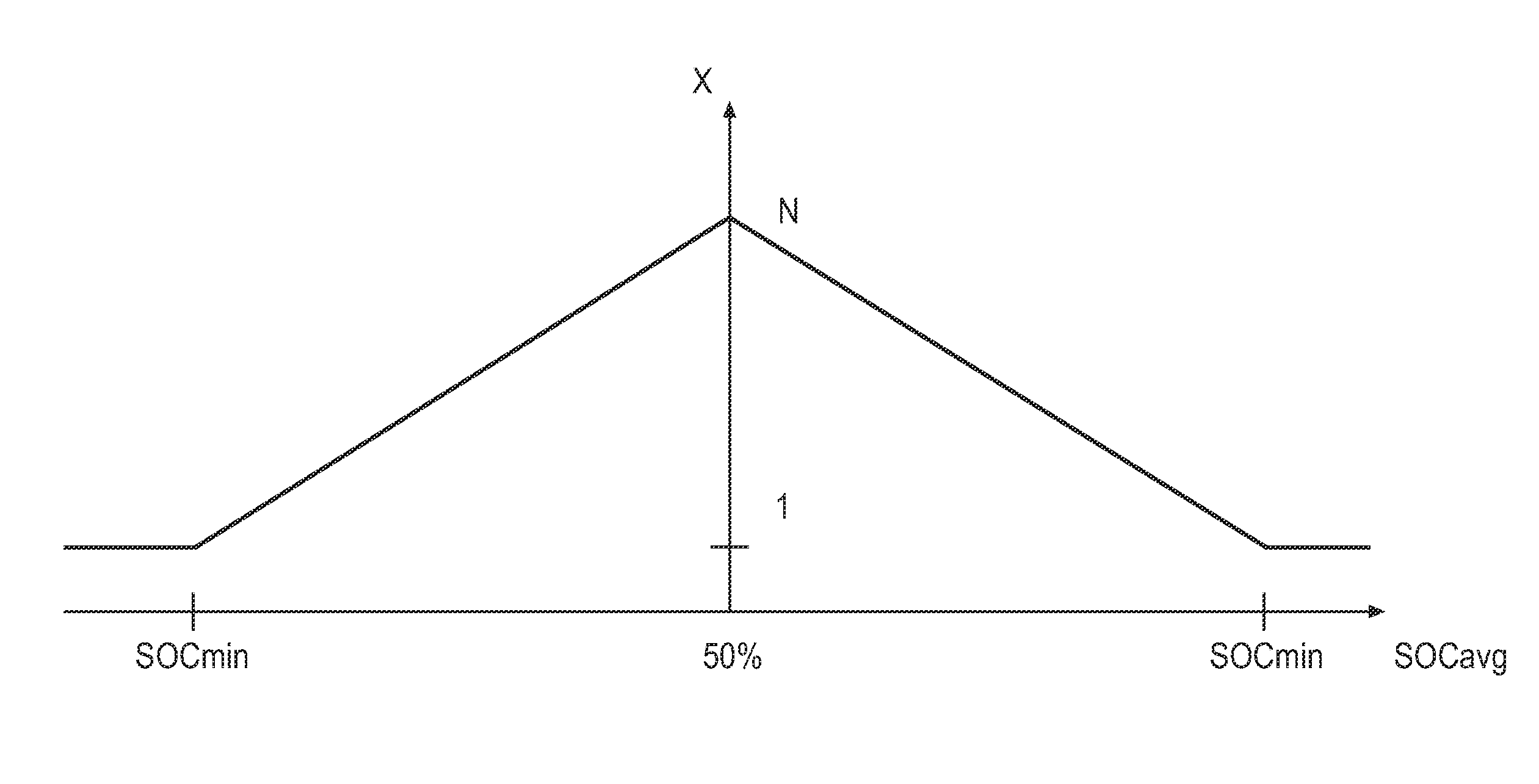

Embodiments of the disclosure may include a method of managing a state of charge of a battery having a plurality of battery cells. The method may include calculating an individual state of charge for each battery cell, calculating an average state of charge for the battery cells, defining a minimum and a maximum average state of charge threshold, and calculating an overall state of charge for the battery such that when the average state of charge is below the minimum threshold, the overall state of charge is calculated based on the state of charge of a subset of battery cells having the lowest state of charge, and when the average state of charge is above the maximum threshold, the overall state of charge is calculated based on the state of charge of a subset of battery cells having the highest state of charge.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- H01M Class
- 4927 Applications Filed
- 4171 Patents Issued To-Date
- 84.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01M Class
- 21.89 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
