Engine starter attachment for battery operated drill/driver gun
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Grant Date -
Aug 11, 2016
app pub date -
Feb 10, 2015
filing date -
Feb 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

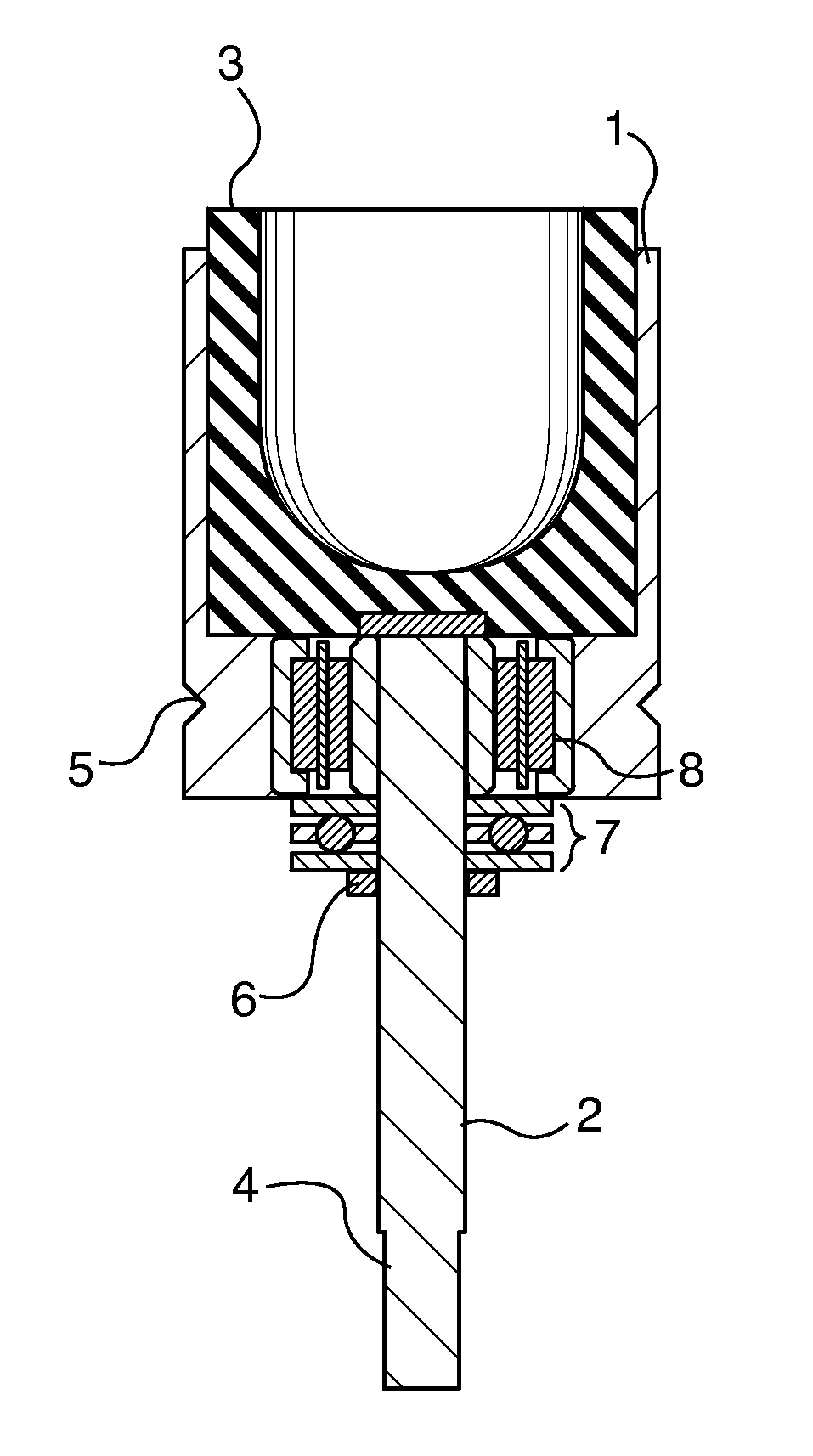

A device designed to be a fixture for a commercially available battery operated drill/driver gun to start an internal combustion engine such as a model airplane engine by pressing the device onto the nose cone of the engine. The portion of the device which comes into contact with the nose cone of the engine is a cylinder connected to a shaft with a one way clutch. A rubber or silicone adapter is inserted into the cylinder attached to the shaft; the adaptor cone of the engine fits into the rubber or silicone adapter on the device.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2015 Application Filing Year
- F02N Class
- 284 Applications Filed
- 234 Patents Issued To-Date
- 82.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F02N Class
- 18.83 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
