Cellar oil recovery techniques for in situ operations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Grant Date -
Sep 18, 2014
app pub date -
Mar 14, 2014
filing date -
Mar 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

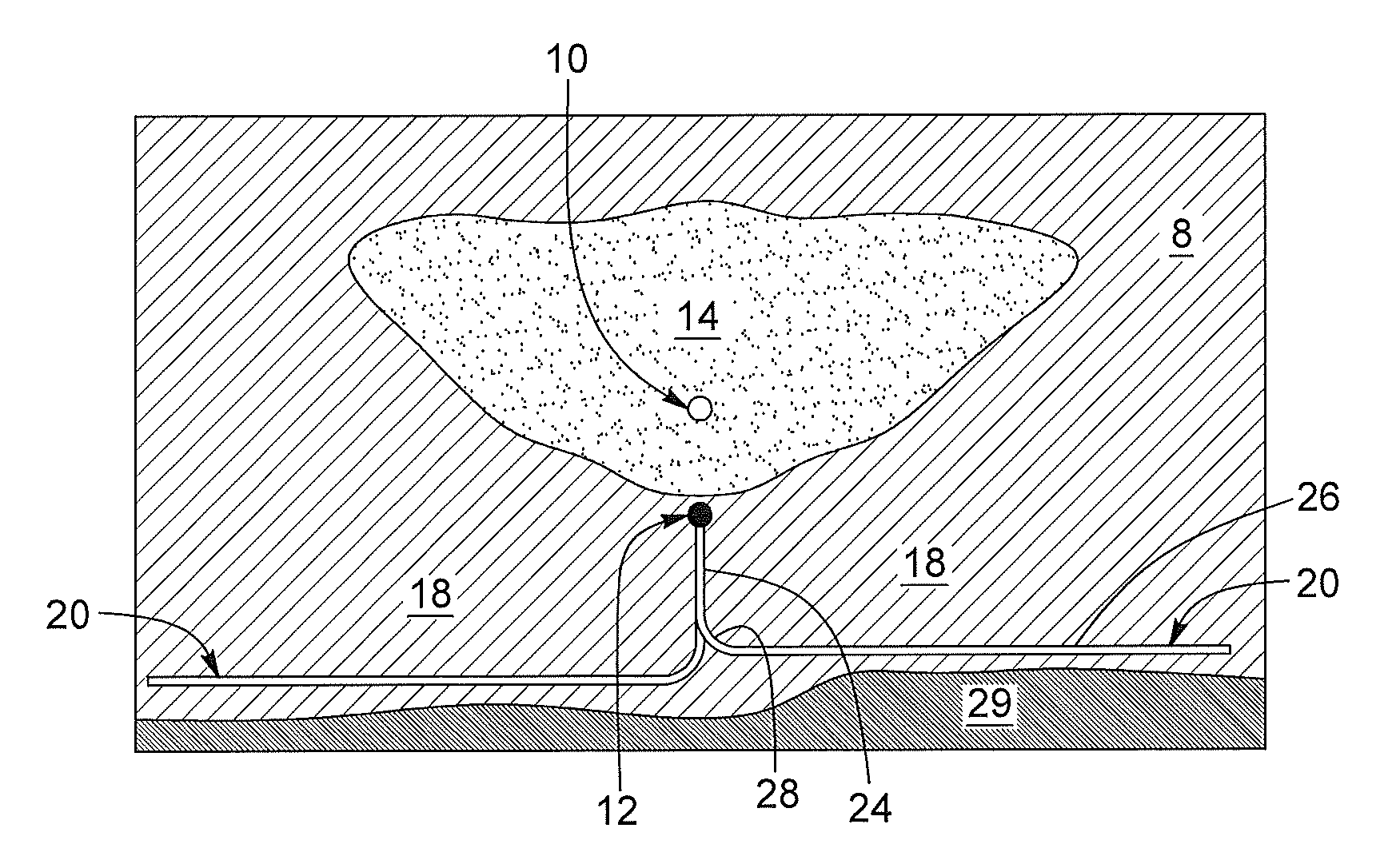

Techniques for recovering hydrocarbons, such as heavy hydrocarbons or bitumen, from a cellar region below a horizontal production well can include providing a cellar well section that extends from the horizontal production well into the cellar region. The horizontal production well can be part of a Steam-Assisted Gravity Drainage (SAGD) in situ recovery system, which forms a hydrocarbon depleted region and a hydrocarbon bearing cellar region. The cellar region includes hydrocarbons that have been pre-heated by SAGD operations. One or more cellar well sections are provided from the SAGD production well to extend into the cellar region, in order to form a branched production well. A pressurizing gas can be injected into the hydrocarbon depleted region from a SAGD injection well, in order to provide sufficient pressure to promote production of pre-heated hydrocarbons from the cellar region through the cellar well section. A branch well section can also be provided from a horizontal production well into a pre-heated adjacent region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E21B Class
- 4199 Applications Filed
- 3550 Patents Issued To-Date
- 84.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- E21B Class
- 11.26 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
