Packaging container and method for its production
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Issued Date -
N/A
app pub date -
Feb 18, 2014
filing date -
Mar 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

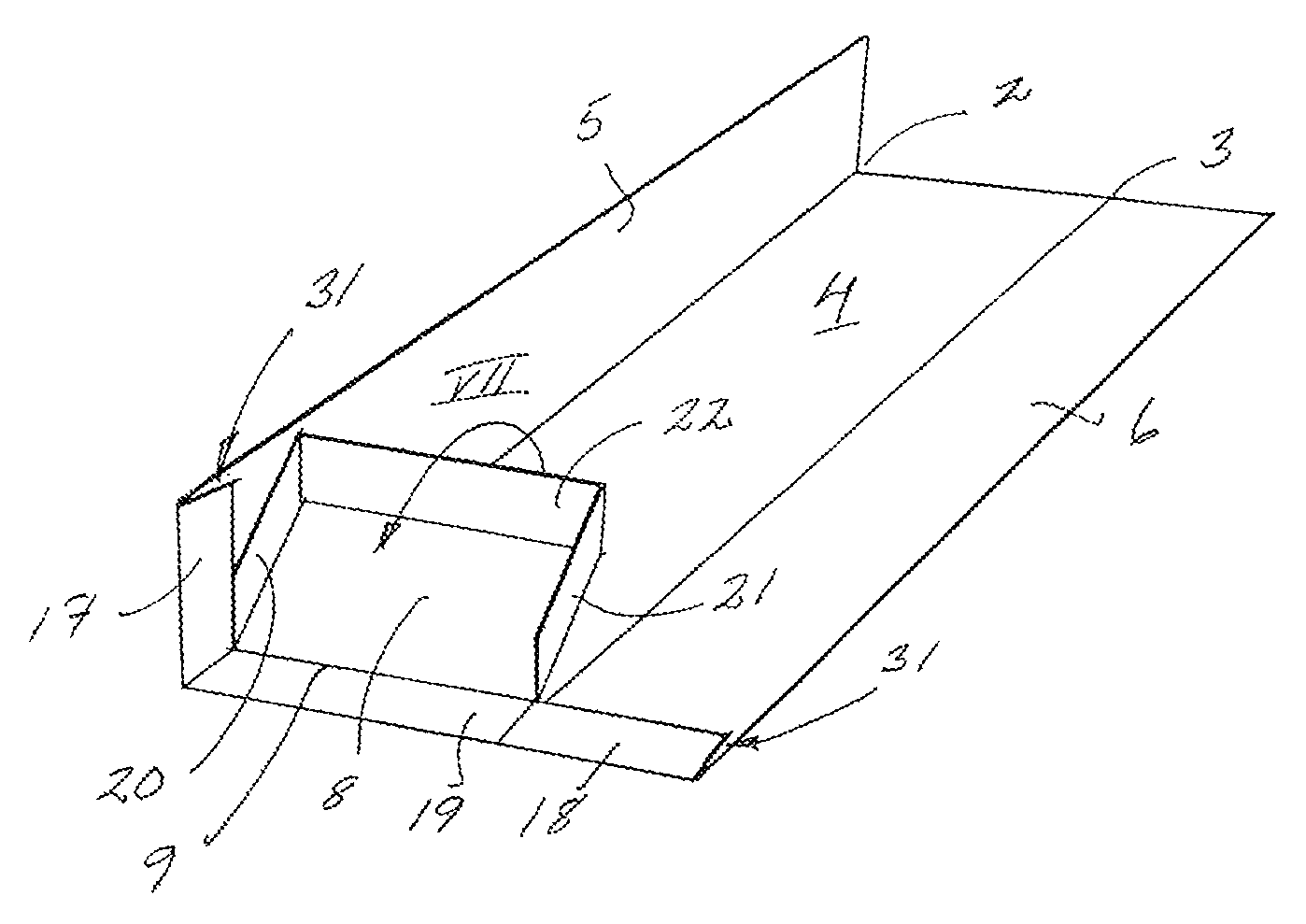

A packaging container includes at least three integrally coupled panels connected by longitudinal scoring lines for forming a bottom and connecting sides of a rectangular case, which can be raised from an individual cardboard sheet; at least one end of the container is countersunk through an end panel arranged retracted inside a reinforced end zone including strips of side and bottom panel material, folded back against the bottom and side panels along a scoring line extending transversely through the bottom and side panels, wherein the end panel, via a transverse lower scoring line, is united to the folded-back strip of the bottom panel, and the end panel, in each side thereof, includes a respective tab connected with the end panel via a scoring line which extends the longitudinal scoring lines through the end zone, and the tab extends beside and parallel to an adjacent side panel of the container.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B31B Class
- 210 Applications Filed
- 144 Patents Issued To-Date
- 68.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B31B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
