Intraocular shunt inserter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 2017
Grant Date -
May 14, 2015
app pub date -
Nov 13, 2014
filing date -
Nov 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

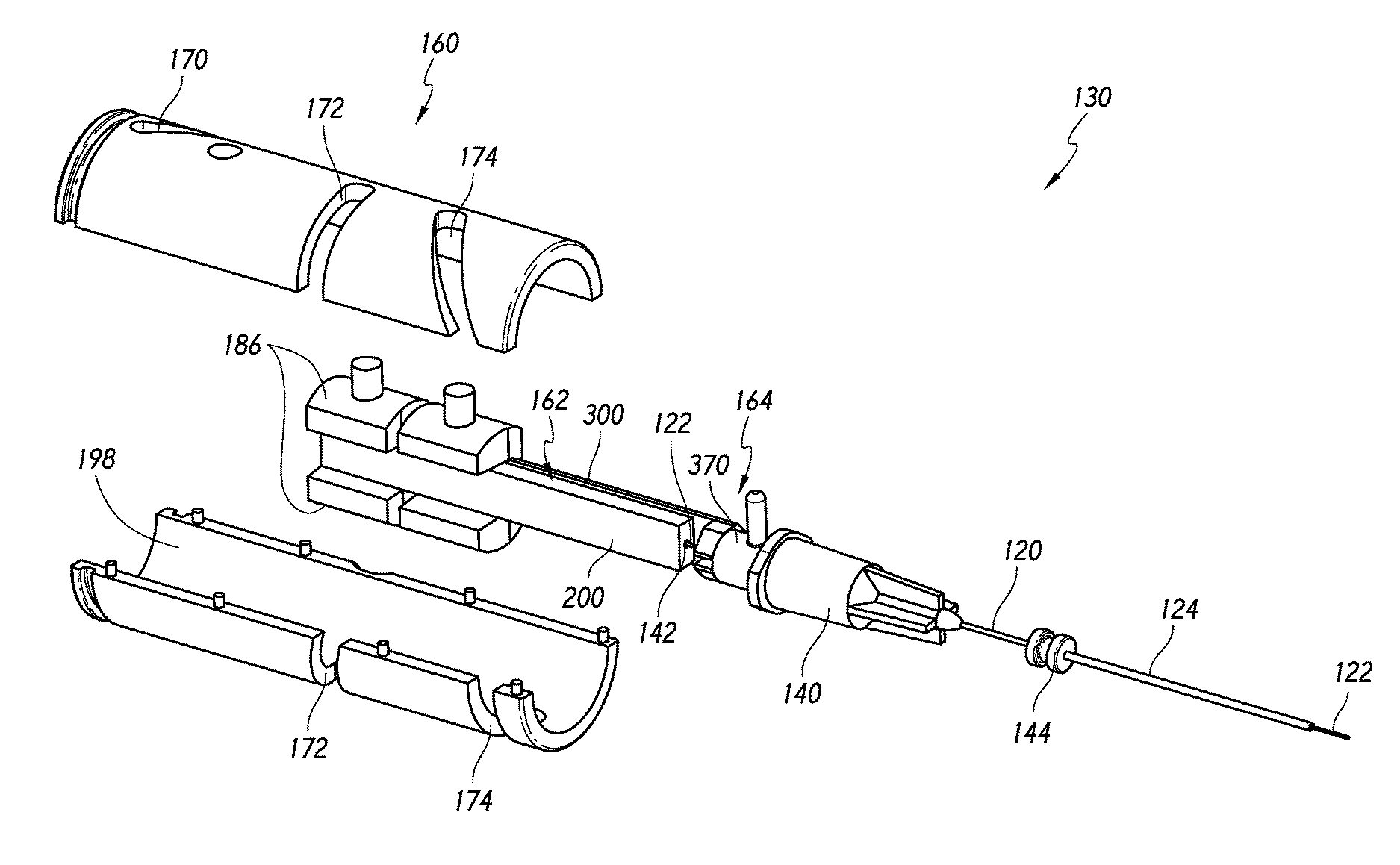

An inserter for treating glaucoma can comprise a housing, a needle, a plunger, a slider component, and a drive component. The drive component is disposed within a cavity of the housing and rotatable within the cavity to result in movement along a longitudinal axis of the inserter to the needle and the plunger upon rotation of the drive component. The slider component is coupled to the housing and slidable along an elongate groove of the drive component such that movement of the slider component along the axis rotates the drive component within the housing.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- A61F Class
- 5198 Applications Filed
- 4375 Patents Issued To-Date
- 84.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- A61F Class
- 66.73 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 7, 2028 |
