Apparatus, system and method for cascaded power conversion
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2017
Grant Date -
Oct 29, 2015
app pub date -
May 4, 2015
filing date -
Jul 29, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

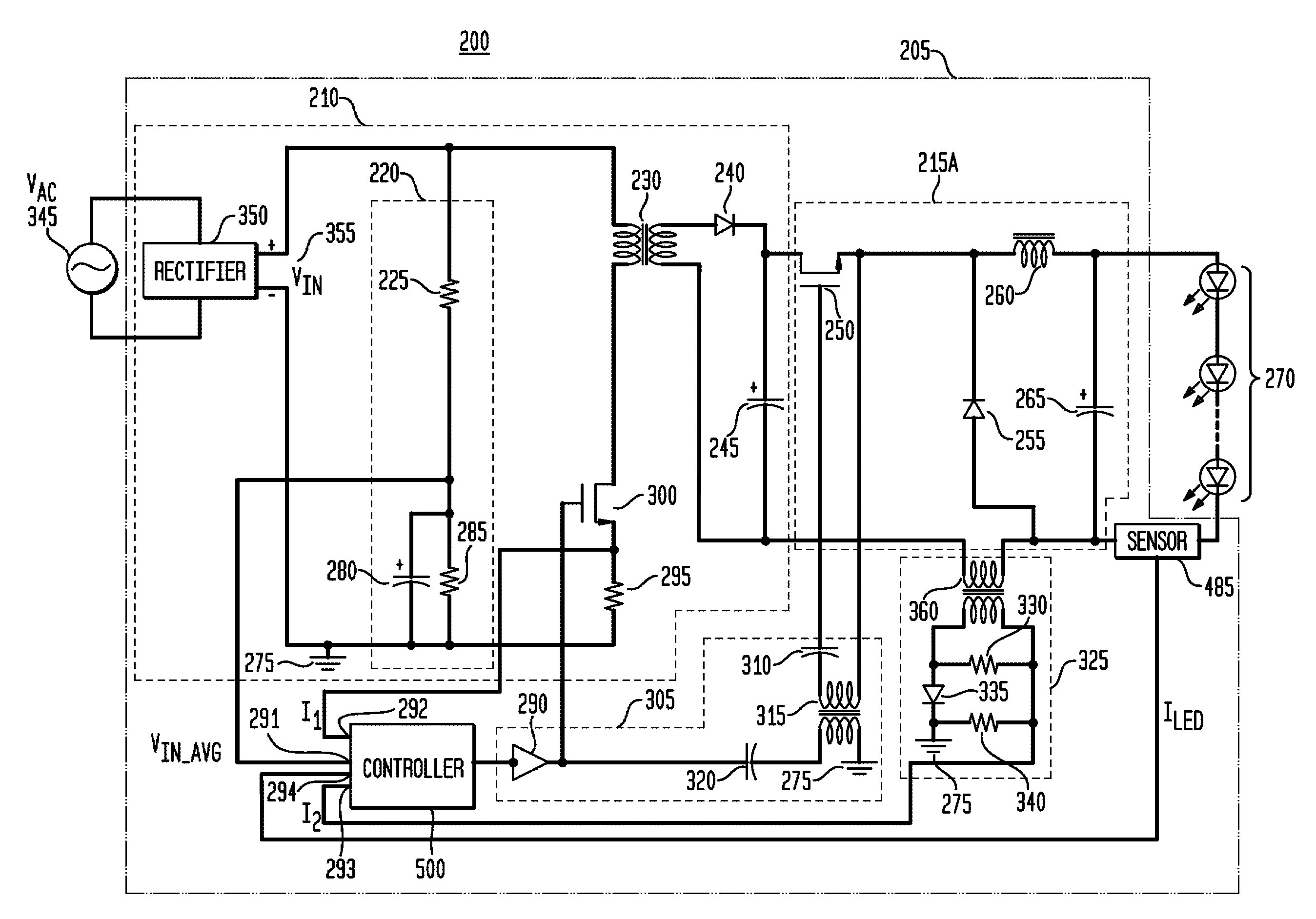

An apparatus, method, and system are provided for power conversion to supply power to a load such as a plurality of light emitting diodes. An exemplary apparatus comprises: a first power converter stage having a first power switch and a first inductive element; a second power converter stage having a second power switch and a second inductive element; a plurality of sensors; and a controller. The second power converter stage provides an output current to the load. The controller is adapted to use a sensed input voltage to determine a switching period, and is further adapted to turn the first and second power switches into an on-state at a frequency substantially corresponding to the switching period while maintaining a switching duty cycle within a predetermined range.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02M Class
- 13.73 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 28, 2028 |
