Single microstructure lens, systems and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2017
Issued Date -
N/A
app pub date -
Jan 5, 2015
filing date -
May 13, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

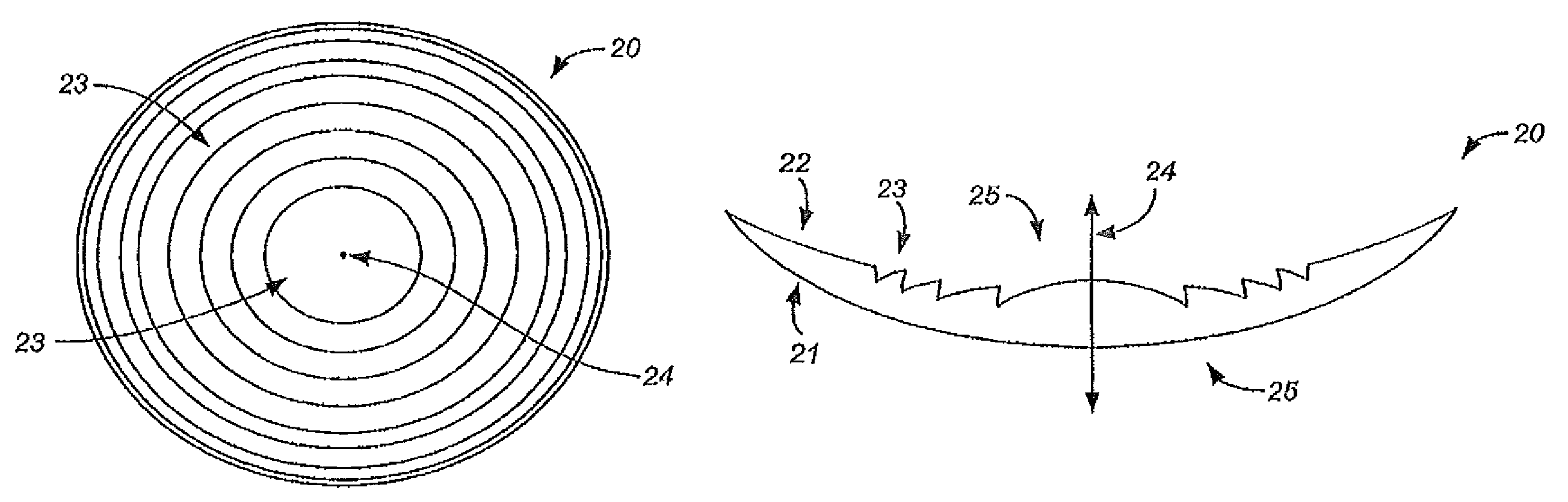

Systems and methods for providing enhanced image quality across a wide and extended range of foci encompass vision treatment techniques and ophthalmic lenses such as contact lenses and intraocular lenses (IOLs). Exemplary IOL optics can include a circular surface structure which acts as a diffractive or phase shifting profile. In some cases, a single ring IOL includes an anterior face and a posterior face, where a profile can be imposed on the anterior or posterior surface or face. The profile can have an inner portion such as a microstructure or central echelette, and an outer portion. Between the inner portion and the outer portion, there may be a transition zone that connects the inner and outer portions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61F Class
- 5839 Applications Filed
- 4516 Patents Issued To-Date
- 77.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 28, 2028 |
