Optical fiber pressure sensor and pressure measuring method using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2017
Issued Date -
N/A
app pub date -
Apr 6, 2015
filing date -
Feb 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

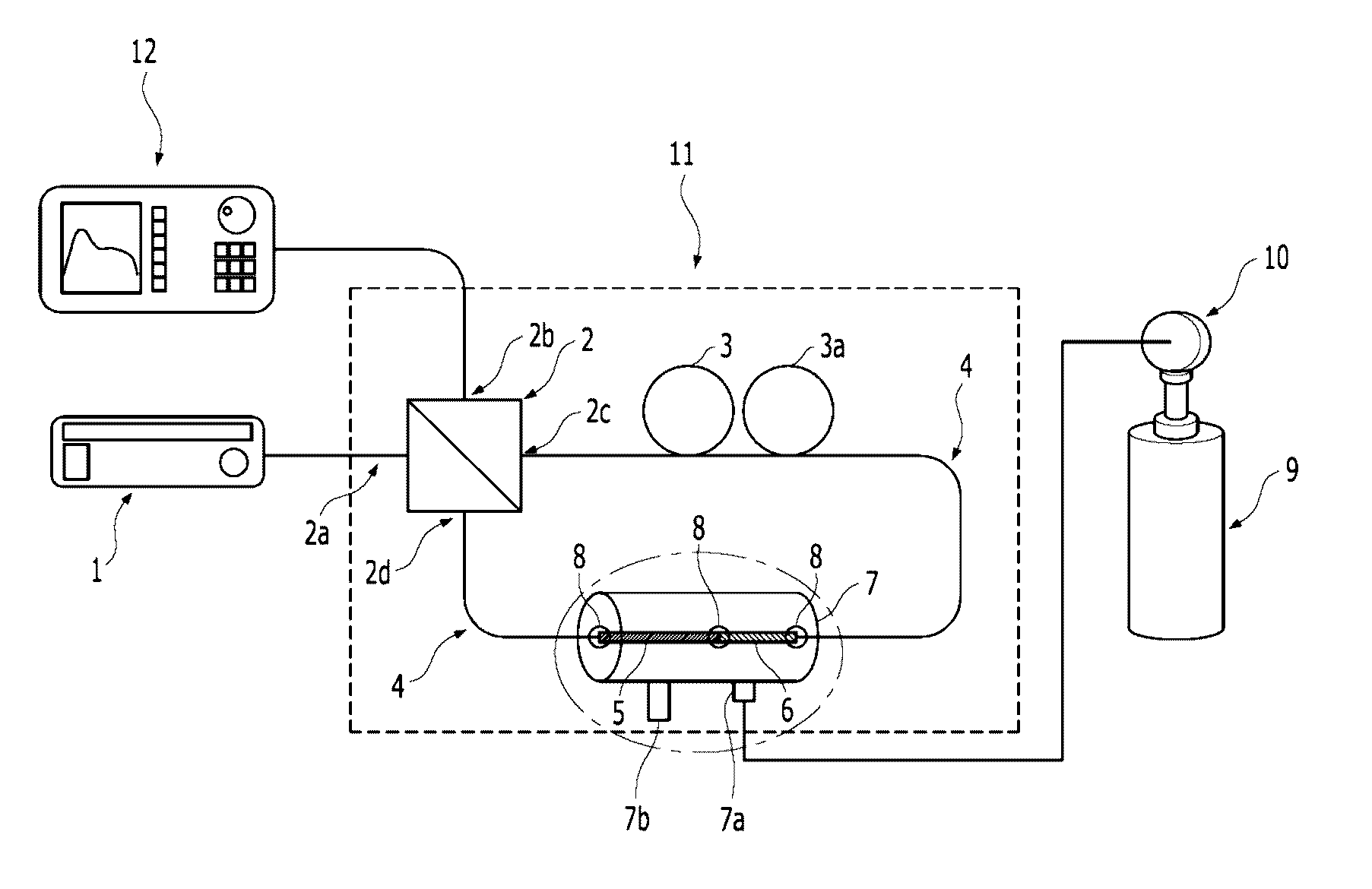

Disclosed is an optical fiber pressure sensor including: a polarization beam splitter that splits input light from a broadband light source into two beams; a polarization controller through which vertically and horizontally polarized light coming out of the polarization beam splitter pass; a pressure chamber in which the polarization beam splitter and the polarization controller may be placed; and an optical spectrum analyzer into which vertically and horizontally polarized light passing through the polarization controller and getting out of the polarization beam splitter is introduced, wherein the pressure chamber includes a polarization-maintaining fiber and an optical fiber Bragg grating.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 28, 2028 |
