Temperature control material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2017
Grant Date -
Oct 6, 2016
app pub date -
Nov 8, 2015
filing date -
Sep 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

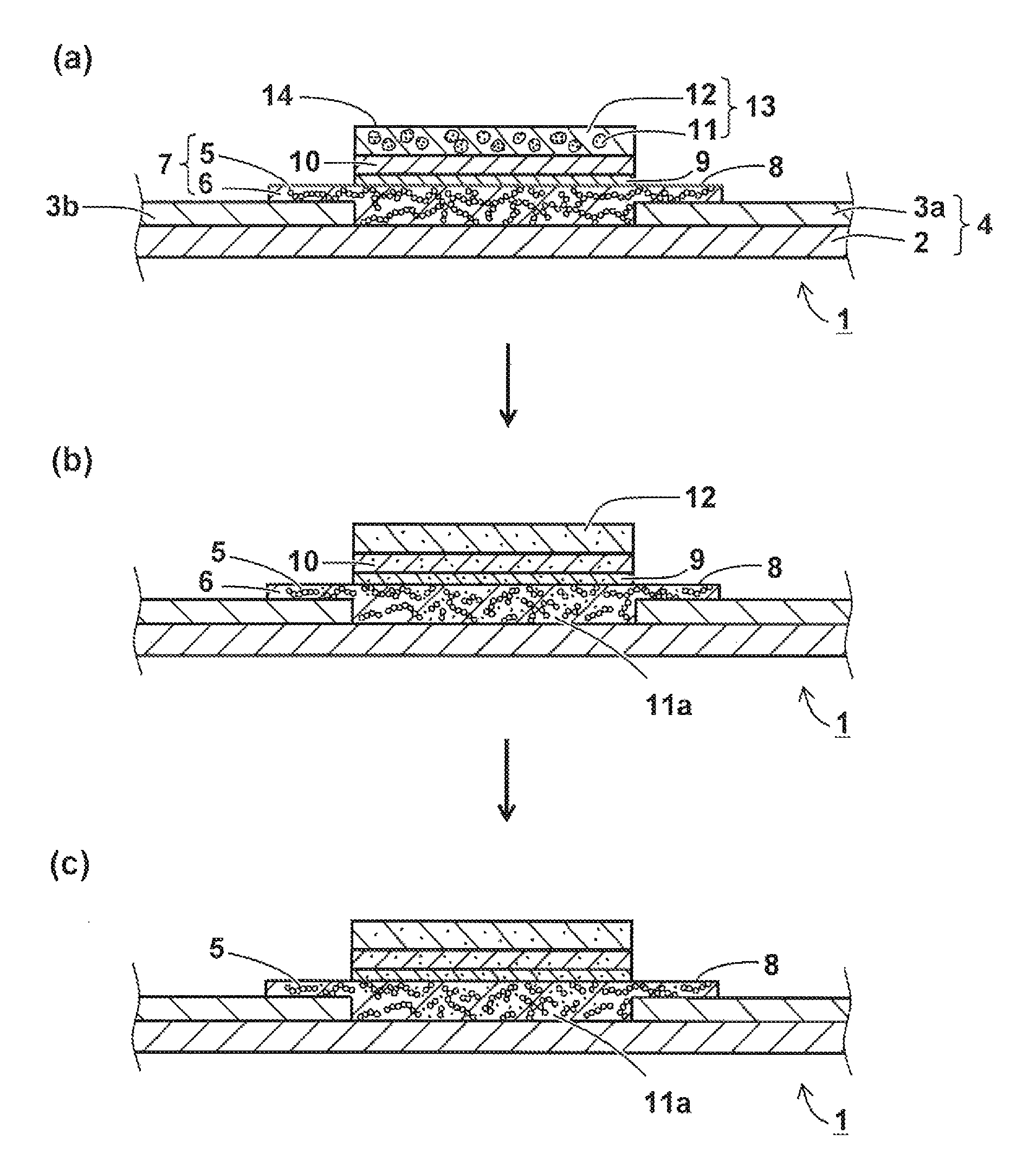

A sensitive and practicable temperature control material which precisely or determinably detects whether the temperature reaches a predetermined temperature by electrical change from a conductive state to an insulated or lower-conductive state has excellent time stability, chemical stability, durability, and weather resistance. The temperature control material includes a heat-melt substance which melts by heat at a melting point according to temperature being detected, and a conductive paste which includes conductive powder. The temperature control material is in a conductive state by the conductive paste. The heat-melt substance is kept away from the conductive paste through a porous material and the temperature control material changes to be in an insulated or lower-conductive states. The heat-melt substance penetrates the porous material to irreversibly permeate and/or disperse into the conductive paste on a heat-melt state thereof.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01K Class
- 765 Applications Filed
- 583 Patents Issued To-Date
- 76.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- G01K Class
- 19.15 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 28, 2028 |
