Wedge lock limb pocket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2017
Grant Date -
N/A
app pub date -
Oct 21, 2016
filing date -
Oct 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

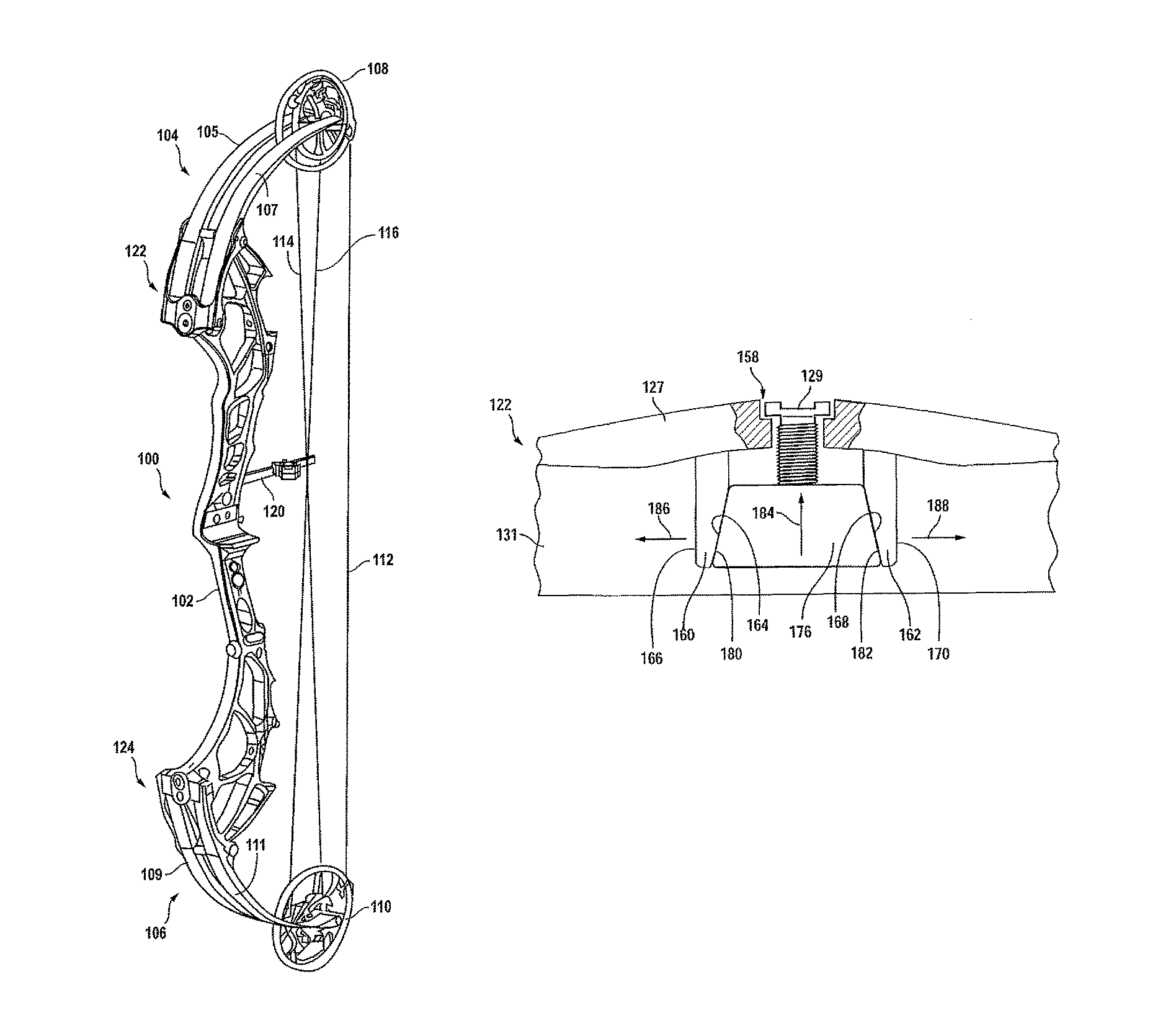

A limb mounting pocket receives butt ends of split limbs of an archery bow. The pocket includes a top wall extending above the butt ends. First and second outer side walls extend from opposite sides of the top wall for engaging outer sides of the butt ends. First and second tabs each have a first end coupled to the lower face of the top wall and having an opposing free end for engaging the inner side walls of the butt ends. An actuating member, which may be a tapered wedge, is disposed between the free ends of the first and second tabs for pushing the first and second tabs generally away from each other and against the inner sides of the butt ends of the limbs to minimize lateral movement thereof.
