Method and system for analyzing security ruleset by generating a logically equivalent security rule-set
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Oct 30, 2014
app pub date -
Jul 10, 2014
filing date -
Feb 7, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

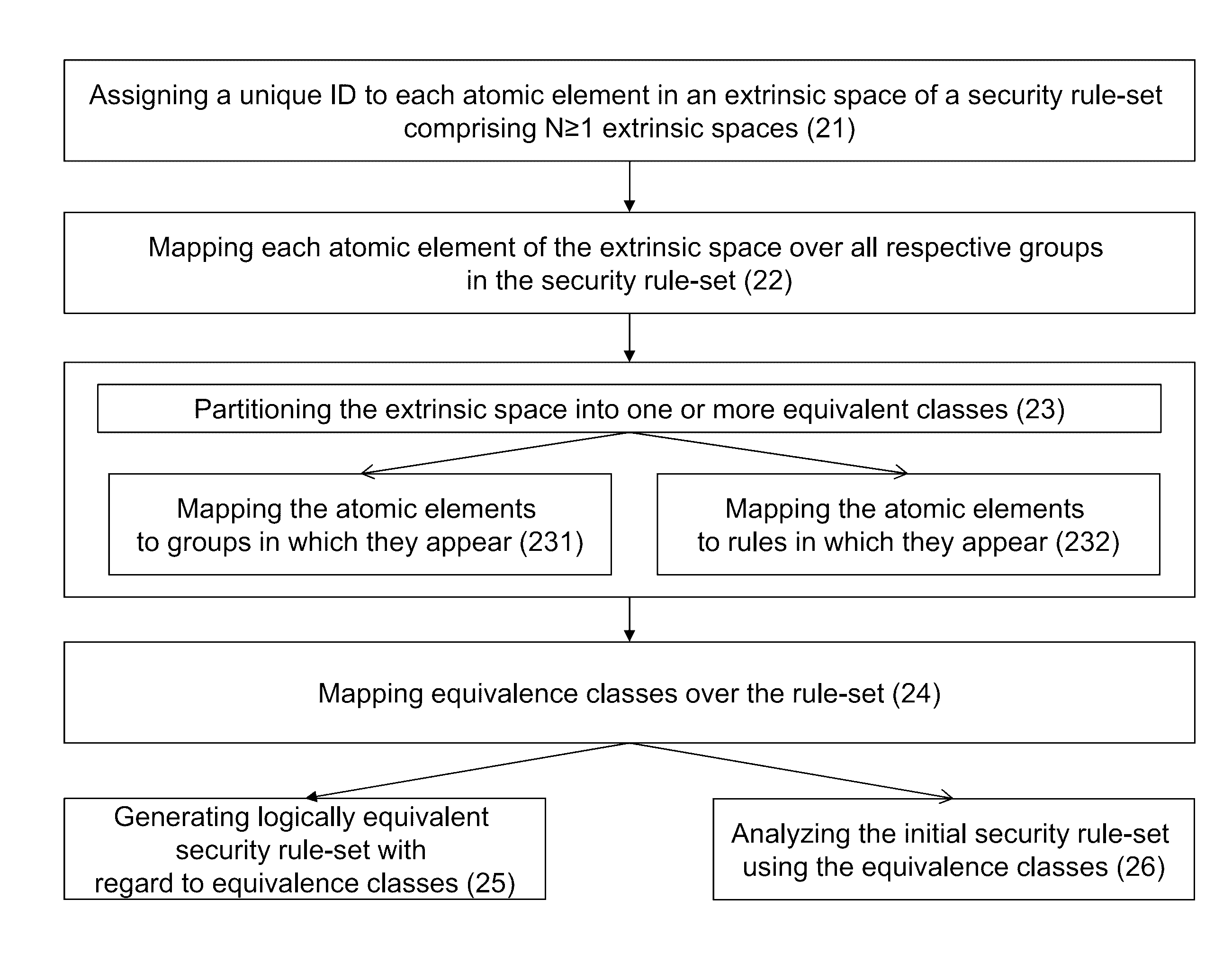

There are provided a rule-set analyzer and a method of analyzing an ordered security rule-set comprising a plurality of rules and characterized by at least one extrinsic field. The method comprises: upon specifying atomic elements constituting an extrinsic space corresponding to the at least one extrinsic field, partitioning, by a processor, the extrinsic space into two or more equivalence classes, wherein each atomic element in the extrinsic space belongs to one and only one equivalence class; mapping, by the processor, said equivalence classes over the rule-set; and analyzing, by the processor, the security rule-set using the results of mapping said equivalence classes over the rule-set.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H04L Class
- 29135 Applications Filed
- 23333 Patents Issued To-Date
- 80.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
