Mutual capacitance touch panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Dec 22, 2016
app pub date -
Jun 5, 2014
filing date -
Jul 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

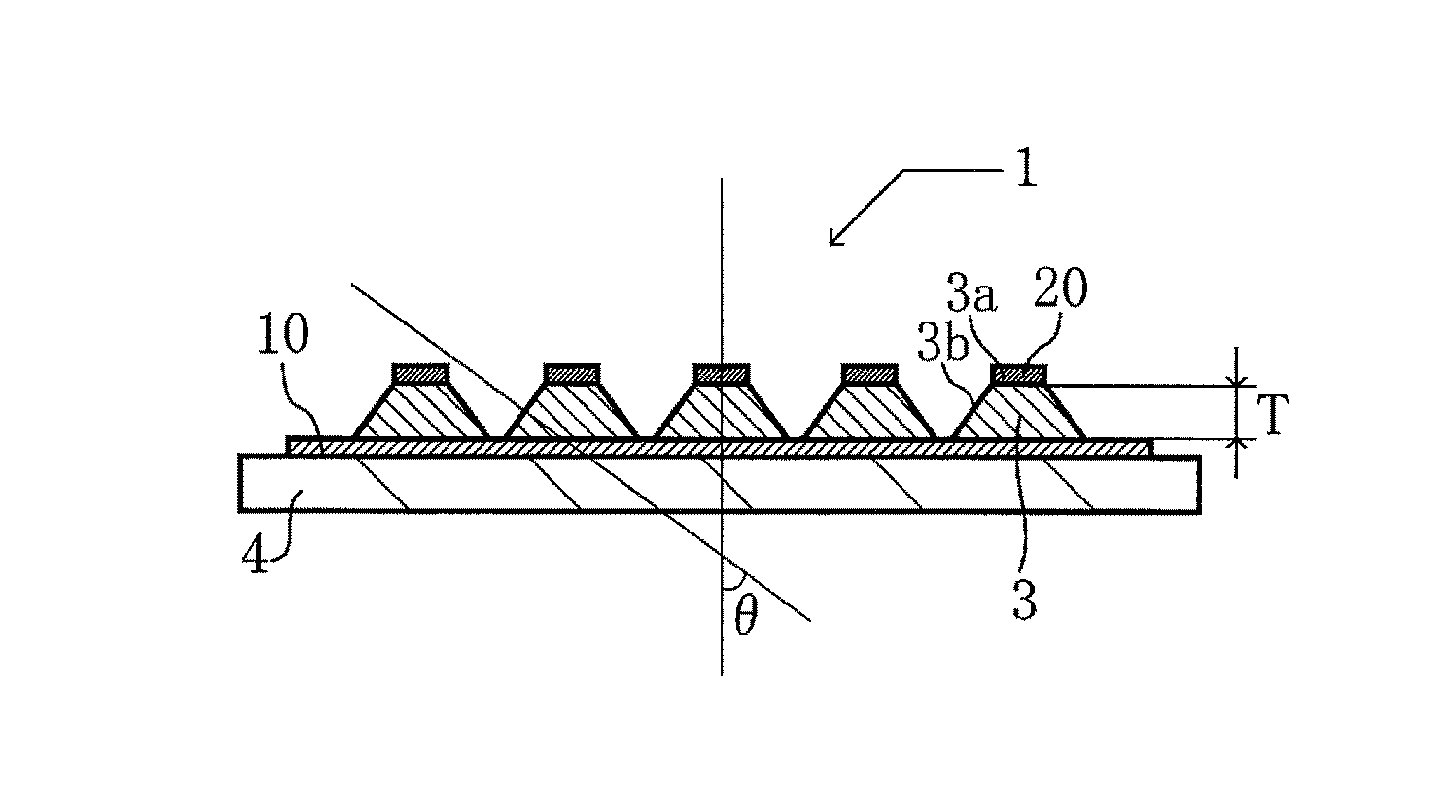

A mutual capacitance touch panel includes a substrate (4), a plurality of lower electrodes (10) provided in a form of wide bands formed of transparent conductive material and arranged parallel with each other and with narrow spacing therebetween along a first direction on a first face of the substrate (4), a plurality of upper electrodes (20) provided in a form of narrow bands formed of transparent conductive material and arranged parallel with each other and with wide spacing therebetween along a second direction intersecting the first direction on the first face of the substrate (4) and on the lower electrodes, and an insulating film (3) formed of photosensitive resin having adhesiveness and arranged between the upper electrodes (20) and the lower electrodes (10) to support the upper electrodes (20). The insulating film (3) includes a sloped side face (3b) sharing a long side with a support face (3a) which supports the upper electrode (20).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G06F Class
- 51669 Applications Filed
- 44228 Patents Issued To-Date
- 85.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
