Profile gauge, measuring device equipped with the profile gauge, and measurement method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Mar 19, 2015
app pub date -
Mar 17, 2014
filing date -
Sep 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

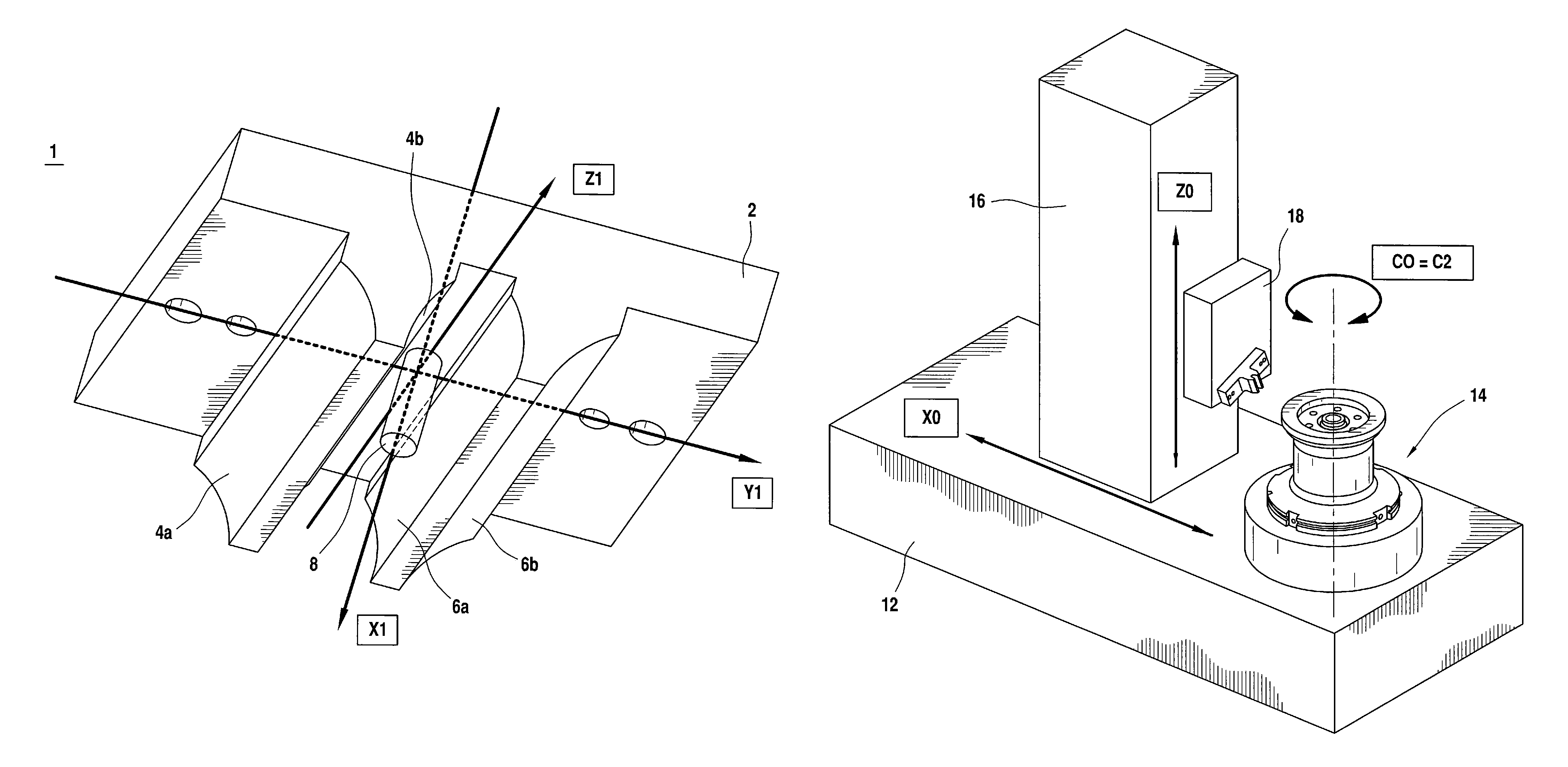

A profile gauge that embodies a measurement geometry for a tool that has a toothed profile designed in particular for the skiving of toothed work pieces, wherein the profile gauge serves to determine at least one measurement quantity which can be used for a machining process, specifically a skiving process, that is to be performed with the tool and wherein, in a phase of said process, the toothed profile of the work piece that is to be generated is formed by a meshing engagement with the teeth of the tool, wherein the profile gauge is distinguished by having a toothed profile section with which, for determining the measurement quantity, the teeth of the tool are brought into a meshing engagement that corresponds to the tooth engagement between the tool and the work piece during the profile-forming phase. The invention further concerns a measuring device and a measurement method.
