US Patent No: 9574696

Stepped load pull back using rams

---

Abstract

---

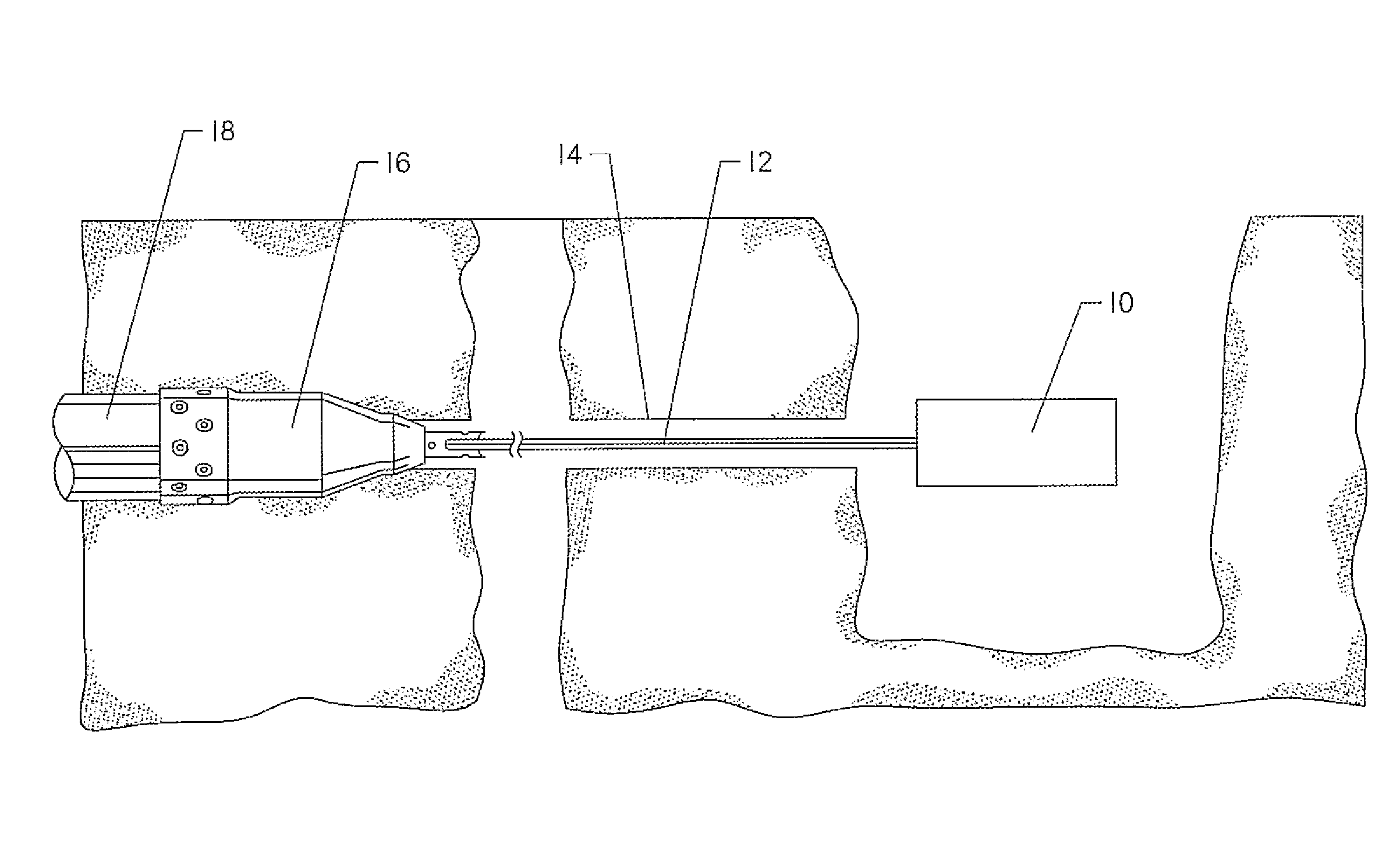

A thrust apparatus for a rod string. The apparatus has a stationary frame, a thrust frame with a rod gripper, two hydraulic cylinders and two rams in fluid communication with the hydraulic cylinders. During low-load operations, the hydraulic cylinders act alone, providing the load to the grippers to pull or push the rod string. When higher loads are required, a check valve is activated, allowing fluid from the hydraulic cylinders to activate the rams. The rams provide additional force to the grippers, and may be activated without mechanical or significant hydraulic changes to the apparatus.

---



---
