Bodkin
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Feb 11, 2016
app pub date -
Aug 3, 2015
filing date -
Aug 6, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

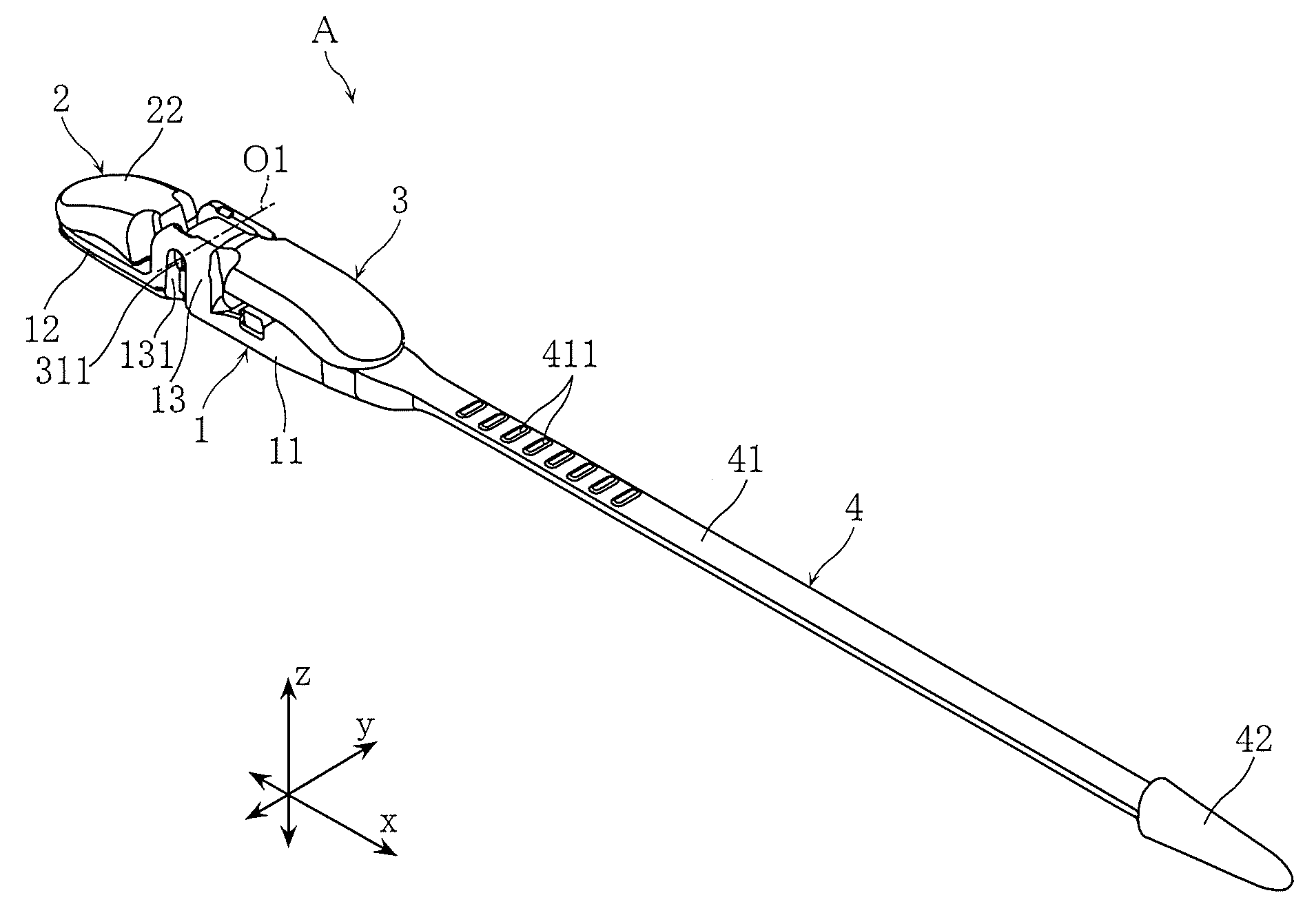

A bodkin includes first and second holding plates, an operation plate and an elongated bar member. The second holding plate overlaps with the first holding plate. The operation plate is rotatably supported by the first holding plate with a part of the second holding plate disposed between the first holding plate and the operation plate. The bar member is connected to the first holding plate so that the operation plate is operable independently of the bar member. Use of the operation plate enables the bodkin to selectively take an opened state and a closed state. In the opened state, the two holding plates are apart from each other, providing a gap into which an end of a string can be inserted. In the closed state, the two holding plates are brought closer to each other, thereby pinching the end of the string between them.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D04D Class
- 6 Applications Filed
- 4 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D04D Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
